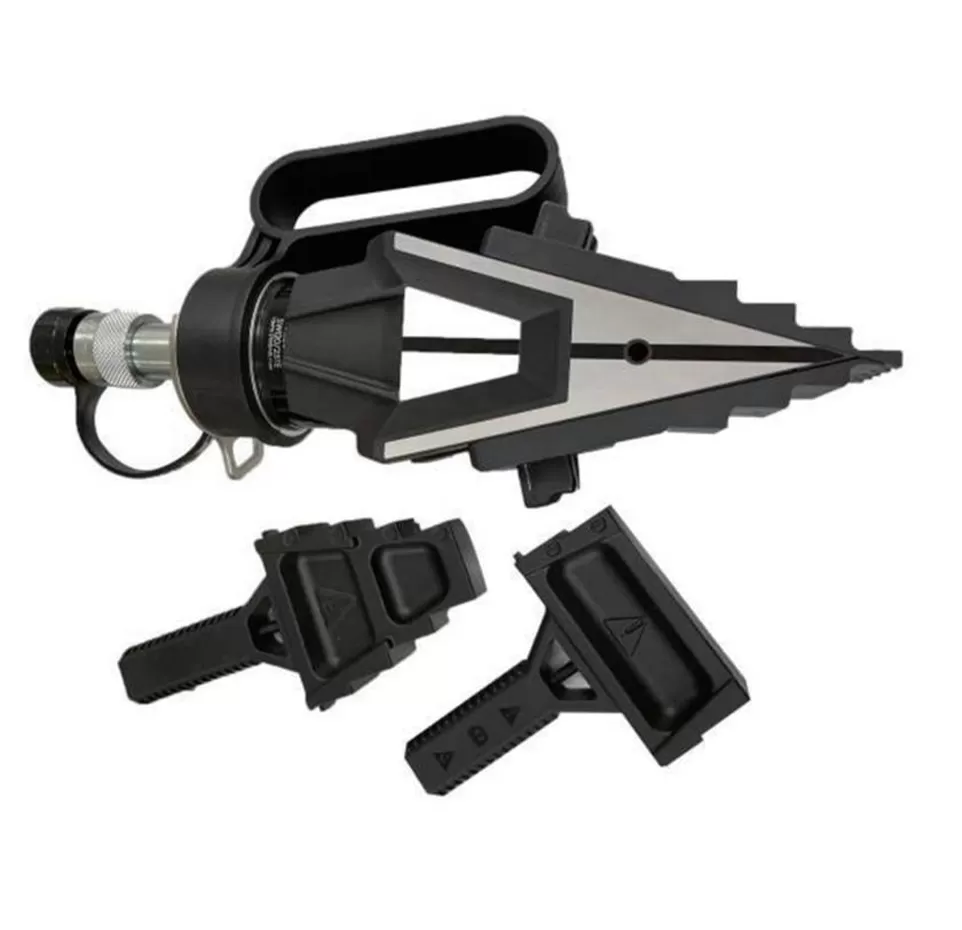

360° rotating high-strength plastic handle: Rotates around the tool’s central axis for easy vertical/horizontal alignment and convenient carrying
Detachable handle for better performance
Scale design for intuitive visual monitoring of the flange separation stroke
Key components adopt forging process for enhanced strength and reliability
Narrow jaw design to reduce tool wear
Optimized structure with quickly replaceable jaws and wedge plates for improved work efficiency

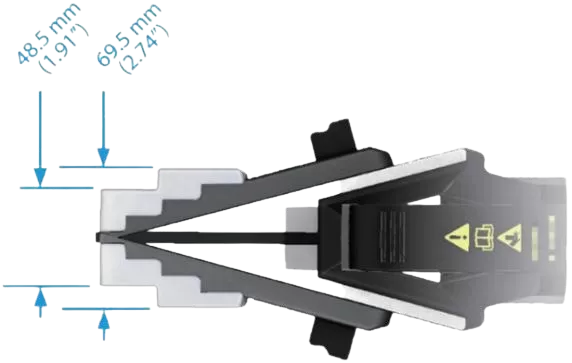

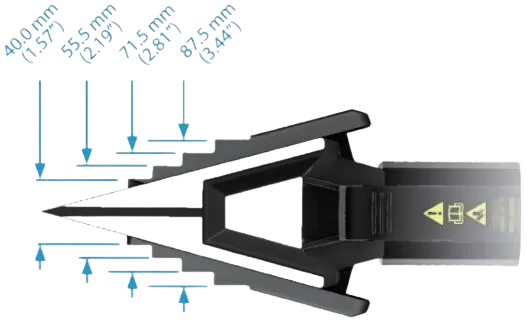

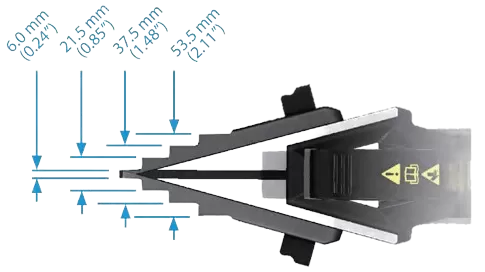

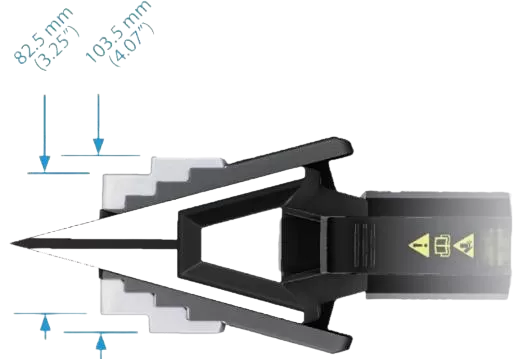

| Model | Max Spreading Force (t)1st Stage | Max Spreading Force (t)4th Stage | Spreading Distance (mm)1st Step | Spreading Distance (mm)Stage 1 - No Shim | Spreading Distance (mm)Stage 2 - With Shim | Configuration | Size (mm) | Weight(kg) |
| SHF-25 | 20 | 24 | 6-40 | 6-87.5 | 48.5-103.5 | Single-head Flange Spreader: Includes shim, hex key, safety sling; Net weight: 6.4kg | 580x330x165 | 11.6 |
| SHF-25S | 20 | 24 | 6-40 | 6-87.5 | 48.5-103.5 | 1-to-1 Configuration: Manual pump, single-head flange spreader, pressure gauge & accessories, 2m hydraulic hose, shim, hex key, safety sling | 920x500x205 | 20.7 |
| SHF-25D | 20 | 24 | 6-40 | 6-87.5 | 48.5-103.5 | Manual pump, double-head flange spreader, pressure gauge & accessories, 2m hydraulic hose, shim, hex key, safety sling | 920x500x205 | 33 |
