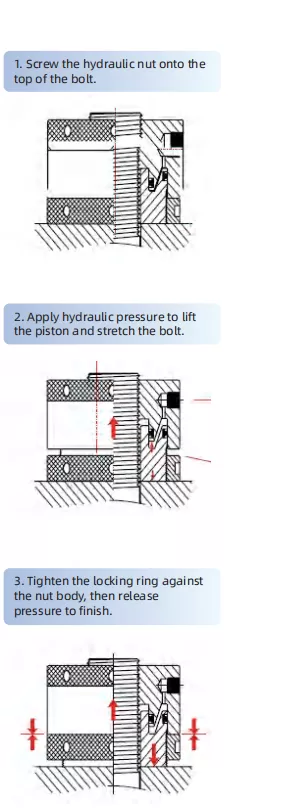

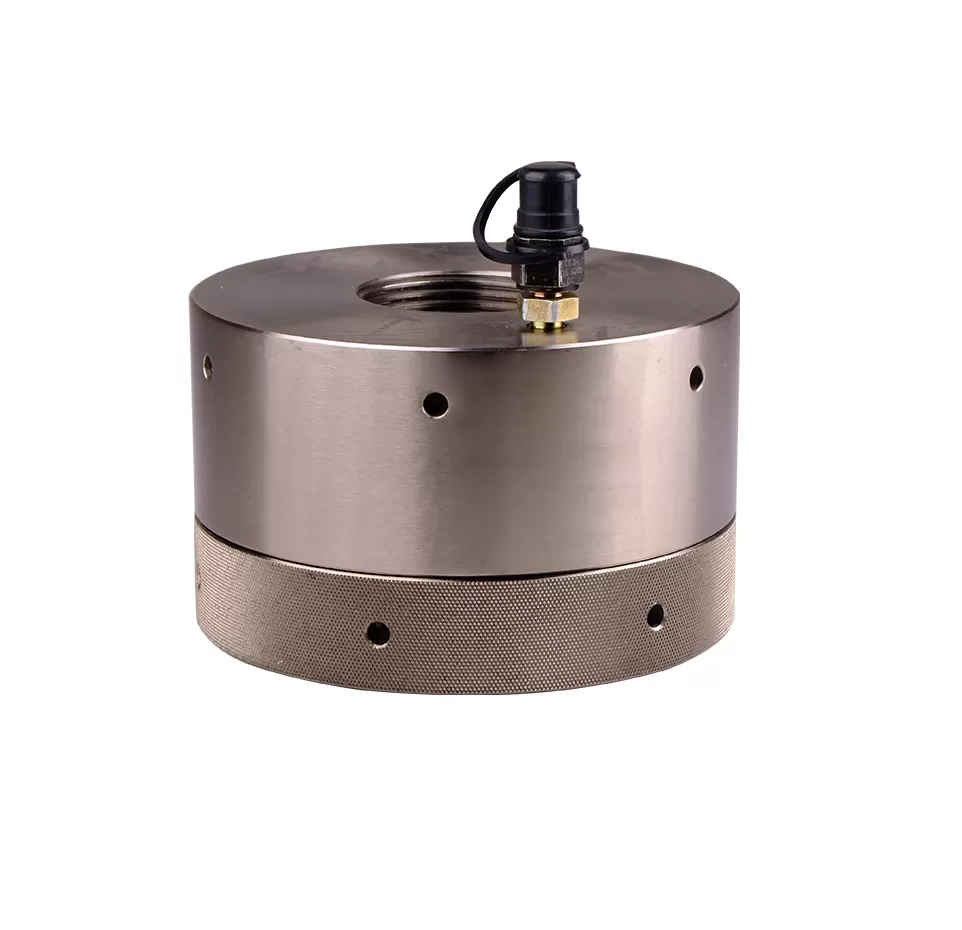

Torque-free design eliminates friction and bolt distortion, applying pure axial tension to bolts
Equipped with stroke indicator for monitoring, measuring and controlling stroke during operation
Ideal for narrow spaces and heavy-duty vibrating machinery; supports simultaneous multi-bolt assembly
Accurate preload setting with precision up to ±3%
| Model | Bolt Size (M) | Output Force (kN) | Outside Dia. (mm) | Height (mm) | Stroke (mm) |
| HN-022 | M22 | 198 | 62 | 53 | 6 |
| HN-024 | M24 | 212 | 65 | 55 | 6 |
| HN-027 | M27 | 254 | 72 | 58 | 6 |
| HN-030 | M30 | 259 | 75 | 61 | 6 |
| HN-033 | M33 | 338 | 83 | 64 | 6 |
| HN-036 | M36 | 368 | 88 | 67 | 6 |
| HN-039 | M39 | 397 | 94 | 70 | 6 |
| HN-042 | M42 | 427 | 100 | 73 | 6 |
| HN-045 | M45 | 486 | 106 | 77 | 6 |
| HN-048 | M48 | 600 | 118 | 80 | 6 |
| HN-052 | M52 | 636 | 123 | 84 | 8 |
| HN-056 | M56 | 804 | 135 | 88 | 8 |
| HN-060 | M60 | 989 | 147 | 92 | 8 |
| HN-064 | M64 | 1036 | 153 | 94 | 8 |
| HN-068 | M68 | 1083 | 159 | 98 | 8 |
| HN-072 | M72 | 1298 | 170 | 104 | 10 |
| HN-076 | M76 | 1351 | 176 | 108 | 10 |
| HN-080 | M80 | 1590 | 194 | 112 | 10 |
| HN-085 | M85 | 1708 | 200 | 117 | 10 |
| HN-090 | M90 | 1976 | 212 | 122 | 10 |
| HN-095 | M95 | 2261 | 223 | 127 | 10 |
| HN-100 | M100 | 2450 | 236 | 135 | 15 |
