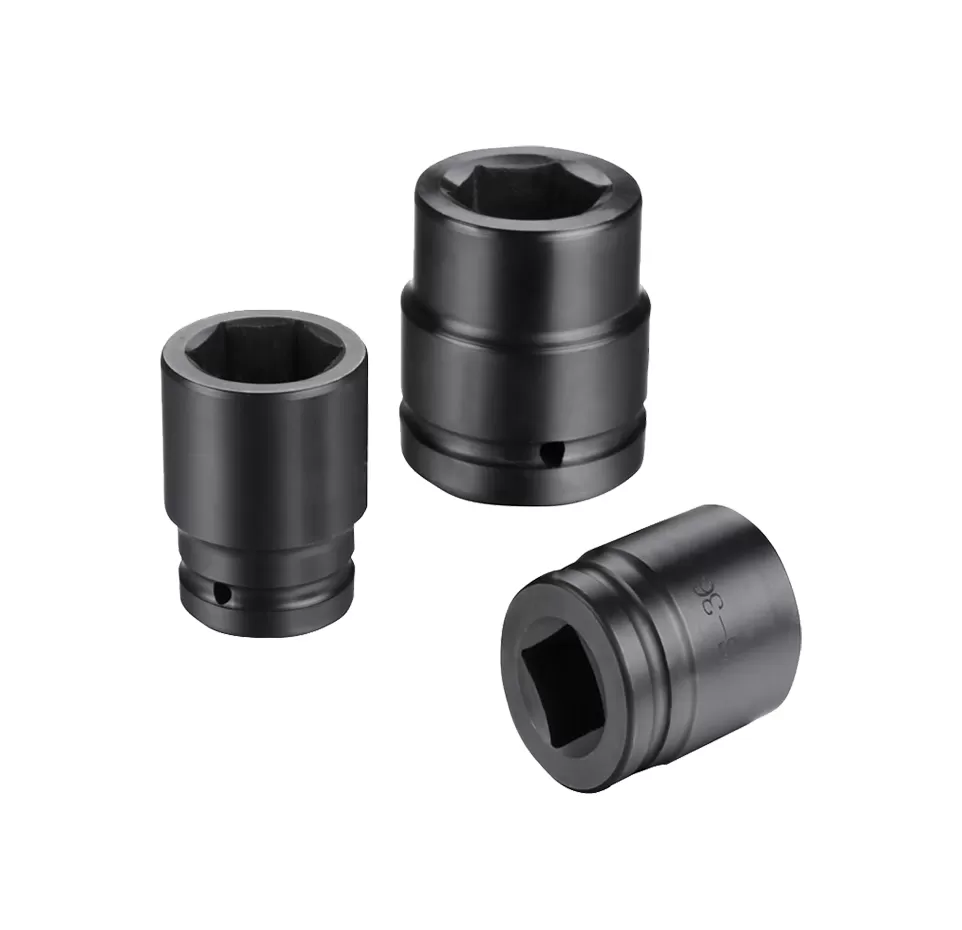

MXTA Series Special Socket for Drive-Type Wrench

Name: MXTA Series Special Socket for Drive-Type Wrench
Brand: Hangzhou Bete Equipment Manufacture Co., Ltd.
Availability: InStock

Made of high-strength chrome-molybdenum steel with impact-resistant black finish, compatible with torque wrenches for fast disassembly of bolts and nuts.

Get a Quote for Your Project  Become a Distributor 

Technical Specifications of MXTA Series Special Socket for Drive-Type Wrench

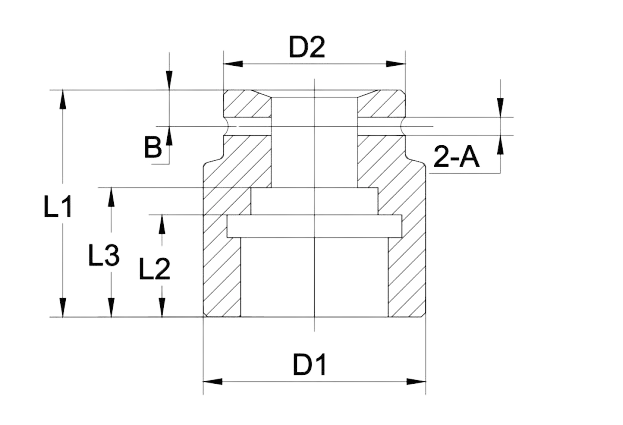

Technical Drawings

Product Parameter Table

Parameters of metric sockets
Thread Spec.	A/F	3/4"(MXTA) A	B	L1	L2	L3	D1	D2	1"(MXTA) A	B	L1	L2	L3	D1	D2	1"-1/2"(MXTA) A	B	L1	L2	L3	D1	D2	2"-1/2"(MXTA) A	B	L1	L2	L3	D1	D2
M16	24	6.3	10	54	31	32	40	40
M18	27	6.3	10	54	32	32	42	42
M20	30	6.3	10	54	33	33	46	44	8	14	59	32	32	54	54
M22	34	6.3	10	54	33	33	52	44	8	14	59	32	32	58	58
M24	36	6.3	10	57	33	33	54	44	8	14	62	32	32	59	59	8	16	85	44	44	74	74
M27	41	6.3	10	58	33	33	60	44	8	14	65	38	38	67	54	8	16	85	44	44	74	74
M30	46	6.3	10	63	38	38	60	44	8	14	65	38	38	67	54	8	16	85	44	44	74	74
M33	50	6.3	10	65	40	40	71	44	8	14	70	43	43	79	60	8	16	90	45	45	79	79
M36	55	6.3	10	70	45	45	77	54	8	14	80	42	52	84	60	8	16	90	45	45	84	84	8	18	100	57	57	86	114
M39	60								8	14	85	45	57	89	60	8	16	100	45	57	94	75	8	18	100	52	52	119	119
M42	65								8	14	85	45	57	98	70	8	16	100	45	57	98	80	8	18	100	52	52	119	119
M45	70								8	14	90	50	62	104	70	8	16	105	50	62	104	80	8	18	120	67	67	128	128
M48	75								8	14	95	50	65	108	70	8	16	110	50	65	118	85	8	18	120	67	67	128	128
M52	80															8	16	115	55	72	118	85	8	18	120	67	67	128	128
M56	85															8	16	125	60	77	128	90	8	18	130	71	71	129	129
M60	90															8	16	125	60	77	139	90	8	18	140	61	73	139	139
M64	95															8	16	130	65	85	139	90	8	18	140	66	73	139	139
M68	100															8	16	135	70	87	144	90	8	18	140	71	81	148	130
M72	105															8	16	135	70	87	149	90	8	18	150	77	89	156	130
M76	110															8	16	135	70	87	158	90	8	18	150	72	90	158	130
M80	115															8	16	135	70	87	159	95	8	18	150	82	98	168	130
M85	120															8	16	135	70	87	168	95	8	18	150	82	98	178	130
M90	130															8	16	155	93	105	189	95	8	18	170	93	114	189	130
M95	135																						8	18	170	93	114	198	130
M100	145																						8	18	170	98	122	210	152
M105	150																						8	18	190	100	140	216	152
M110	155																						8	18	190	100	140	229	152
M115	165																						8	18	190	100	140	241	152
