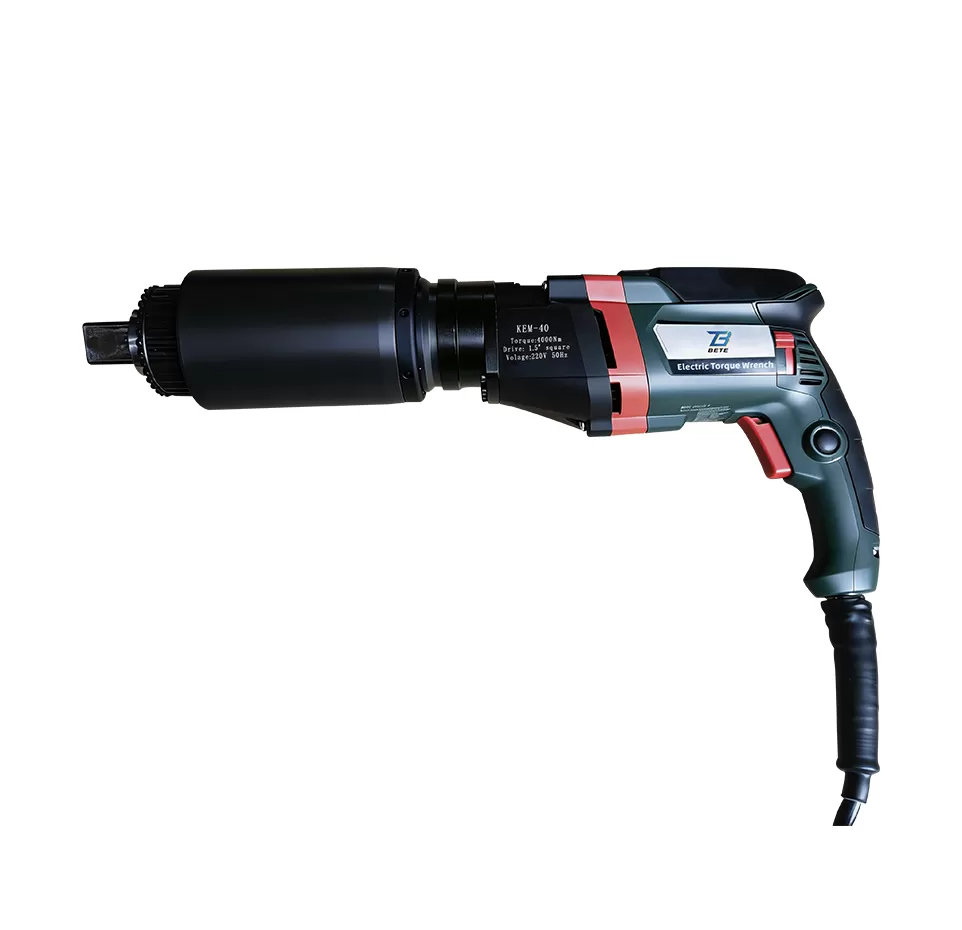

Newly designed KEM-A digital torque wrench with programmable preset torque
Torque range up to 12000 N·m, single-step torque setting
Stable, smooth and controllable torque output
Digital display, 220V 50Hz AC power, non-impact continuous rotation
Auto-stop at target torque, higher efficiency than hydraulic torque wrenches. 6. Torque accuracy: ±6%, repeatability: ±30 N ·m
Two torque setting modes: direct input or recommended by screw parameters. Dual-speed for high/low switching
| Model | Torque (N.m) | Square Drive S (mm) | D (mm) | L (mm) | M (mm) | Weight (kg) | Torque Range (1st Gear) (N.m) | Torque Range (2nd Gear) (N.m) | Speed 1st Gear (rpm) | Max Speed 1st Gear (rpm) |
| KEM-08A | 100-800 | 3/4" | 78 | 426 | 174 | 5 | 500-800 | 100-495 | 14 | 32 |
| KEM-16A | 200-1600 | 1" | 78 | 452 | 200 | 7.7 | 800-1600 | 200-790 | 5 | 14.5 |
| KEM-20A | 300-2000 | 1" | 78 | 452 | 200 | 7.7 | 900-1200 | 200-890 | 4.8 | 14.1 |
| KEM-28A | 400-2800 | 1" | 88 | 485 | 233 | 10.3 | 1200-2800 | 400-1180 | 2.3 | 6.4 |
| KEM-40A | 700-4200 | 1-1/2" | 99 | 508 | 256 | 12.3 | 1900-4200 | 700-1875 | 1.6 | 4.2 |
| KEM-50A | 1000-5000 | 1-1/2" | 113 | 526 | 274 | 15.6 | 2500-5000 | 1000-2478 | 0.9 | 2.8 |
| KEM-60A | 1000-6000 | 1-1/2" | 113 | 526 | 274 | 15.6 | 2500-6000 | 1000-2475 | 0.9 | 2.8 |
| KEM-80A | 1200-8000 | 1-1/2" | 120 | 536 | 284 | 16.8 | 2500-8000 | 1200-2450 | 0.86 | 2.2 |
| KEM-100A | 2000-10000 | 1-1/2" | 128 | 569 | 317 | 21.8 | 3500-10000 | 2000-3450 | 0.6 | 1.5 |
| KEM-120A | 2000-12000 | 1-1/2" | 128 | 583 | 331 | 21.8 | 4000-12000 | 2000-3950 | 0.6 | 1.5 |
