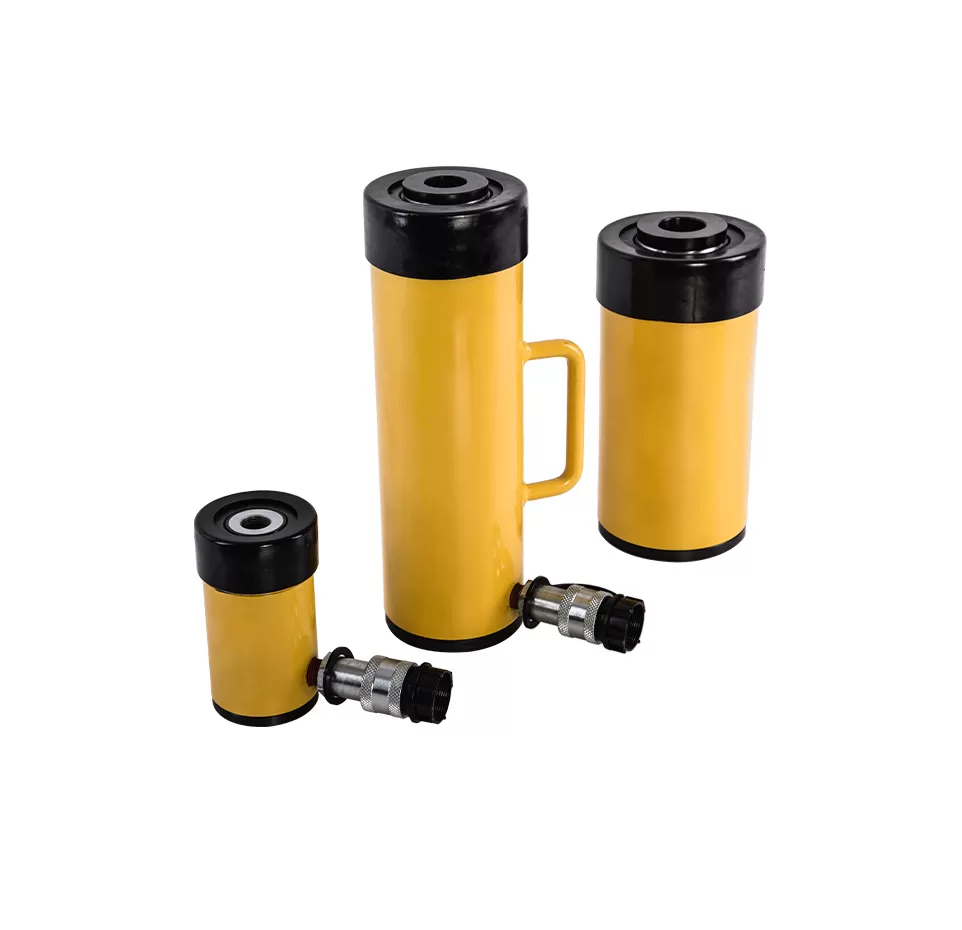

Hollow plunger design for pushing and pulling with fixtures
Single-acting cylinder with spring return for fast, easy operation
Paint-coated surface for excellent corrosion resistance

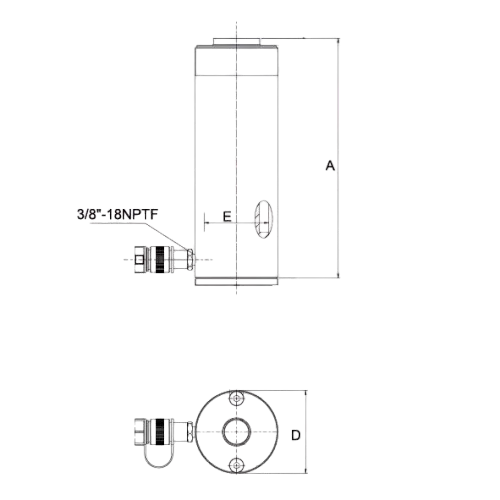

| Handle Type (S) | Model | Ton (t) | Stroke (mm) | Pressure Area (cm) | Oil Volume (cm) | Closed Height A(mm) | Extended Height (mm) | Outer Dia. D(mm) | Inner Dia. E(mm) | Ram Dia. F(mm) | Weight (kg) |
| RCH120 | 12 | 8 | 17.9 | 14 | 55 | 63 | 69 | 54.1 | 35 | 1.5 | |
| RCH121 | 12 | 42 | 17.9 | 75 | 120 | 162 | 69 | 54.1 | 35 | 2.8 | |
| RCH1211 | 12 | 42 | 17.9 | 75 | 120 | 162 | 69 | 54.1 | 35 | 2.8 | |
| RCH123 | 12 | 76 | 17.9 | 136 | 184 | 260 | 69 | 54.1 | 35 | 4.4 | |
| ● | RCH202 | 20 | 50 | 30.7 | 150 | 162 | 211 | 99 | 73.1 | 55 | 7.7 |
| ● | RCH206 | 20 | 155 | 30.7 | 476 | 306 | 461 | 99 | 73.1 | 55 | 14.1 |
| ● | RCH302 | 30 | 64 | 46.6 | 298 | 179 | 242 | 115 | 88.9 | 63.5 | 10.9 |
| ● | RCH306 | 30 | 155 | 46.6 | 722 | 331 | 485 | 115 | 88.9 | 63.5 | 21.8 |
| ▲ | RCH603 | 60 | 77 | 82.3 | 626 | 248 | 323 | 160 | 123.9 | 92 | 28.1 |
| ▲ | RCH606 | 60 | 152 | 82.3 | 1259 | 325 | 476 | 160 | 123.9 | 92 | 35.4 |
| ▲ | RCH1003 | 100 | 76 | 133 | 1011 | 254 | 330 | 212 | 165.1 | 127 | 63 |
