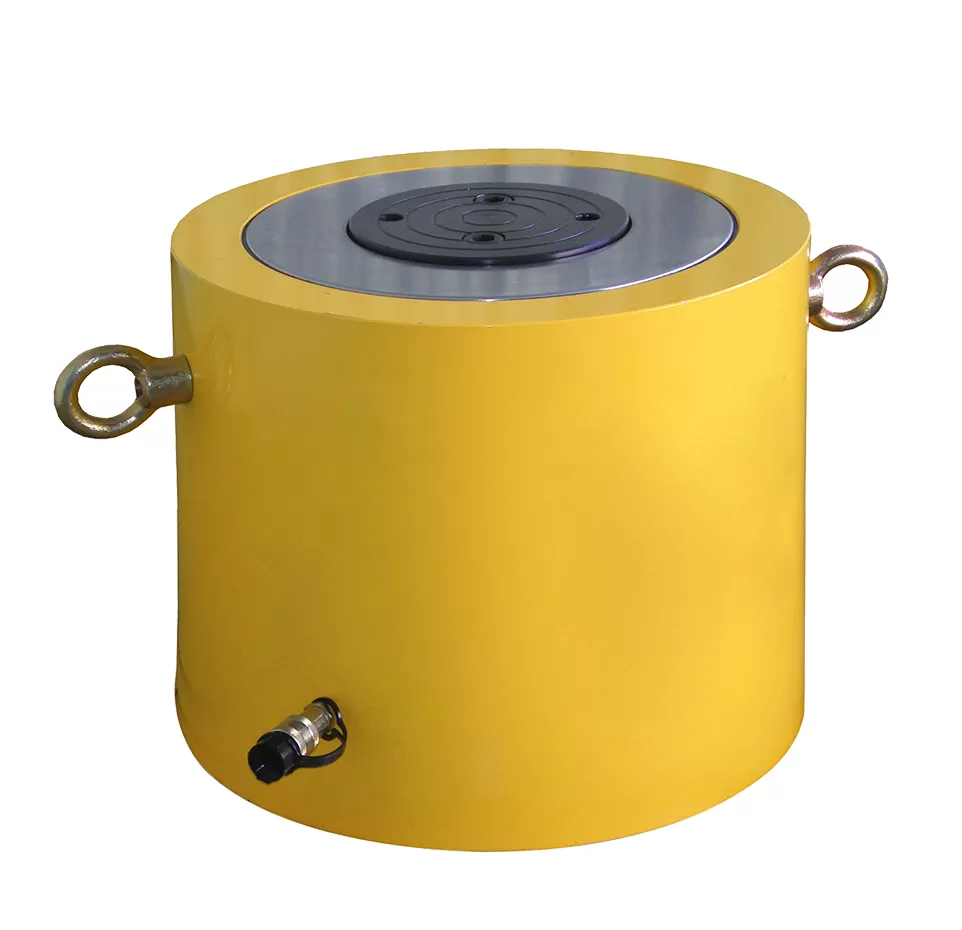

CLS Series Single-acting Heavy-duty Hydraulic Cylinder

Overﬂow hole design for stroke control and safety guarantee
Single-acting hydraulic cylinder with load return function
Mountable anti-eccentric load pressure head for tool protection
Composite coating for stronger corrosion resistance

Get a Quote for Your Project  Become a Distributor 

Technical Specifications of CLS Series Single-acting Heavy-duty Hydraulic Cylinder

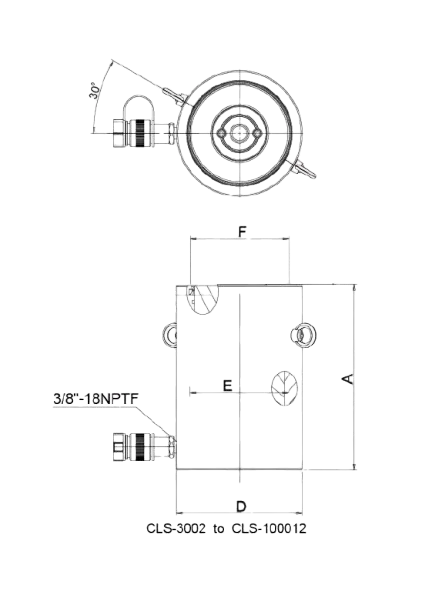

Technical Drawings

Product Parameter Table

Handle Type (S)	Model	Ton (t)	Stroke (mm)	Pressure Area (cm²)	Oil Volume (cm³)	Closed Height A(mm)	Extended Height B(mm)	Outer Dia. D(mm)	Inner Dia. E(mm)	Ram Dia. F(mm)	Weight (kg)
★	CLS502*	50	50	70.9	355	128	178	125	95	95	14
★	CLS504*	50	100	70.9	709	178	278	125	95	95	18
★	CLS506	50	150	70.9	1064	228	378	125	95	95	23
★	CLS508*	50	200	70.9	1418	278	478	125	95	95	28
★	CLS5010*	50	250	70.9	1773	328	578	125	95	95	33
★	CLS5012*	50	300	70.9	2127	378	678	125	95	95	38
★	CLS1002*	100	50	132.7	664	143	193	164	130	130	24
★	CLS1004	100	100	132.7	1327	193	293	164	130	130	32
★	CLS1006	100	150	132.7	1991	243	393	164	130	130	40
★	CLS1008*	100	200	132.7	2654	293	493	164	130	130	49
★	CLS10010	100	250	132.7	3318	343	593	164	130	130	58
★	CLS10012	100	300	132.7	3981	393	693	164	130	130	66
★	CLS1502	150	50	198.6	993	165	215	205	159	159	43
★	CLS1504	150	100	198.6	1986	215	315	205	159	159	55
★	CLS1506	150	150	198.6	2979	265	415	205	159	159	69
★	CLS1508	150	200	198.6	3972	315	515	205	159	159	82
★	CLS15010	150	250	198.6	4965	365	615	205	159	159	95
★	CLS15012	150	300	198.6	5958	415	715	205	159	159	108
★	CLS2002	200	50	265.6	1330	193	243	235	183.9	183.9	66
★	CLS2006	200	150	265.6	3898	293	443	235	183.9	183.9	101
★	CLS20012	200	300	265.6	7977	443	743	235	183.9	183.9	154
★	CLS2502	250	50	366.1	1832	193	243	275	215.9	215.9	90
★	CLS2506	250	150	366.1	5496	293	443	275	215.9	215.9	137
★	CLS25012	250	300	366.1	10996	443	743	275	215.9	215.9	208
★	CLS3002	300	50	456.2	2281	235	285	310	241	241	137
★	CLS3006	300	150	456.2	6483	335	485	310	241	241	198
★	CLS30012	300	300	456.2	13710	485	785	310	241	241	288
★	CLS4002	400	50	559.9	2800	265	315	350	267	267	200
★	CLS4006	400	150	559.9	8399	365	515	350	267	267	275
★	CLS40012	400	300	559.9	16770	515	815	350	267	267	390
★	CLS5002	500	50	731.1	3656	295	345	400	305.1	305.1	289
★	CLS5006	500	150	731.1	10967	395	545	400	305.1	305.1	390
★	CLS50012	500	300	731.1	21900	545	845	400	305.1	305.1	540
★	CLS6002	600	50	845.8	4277	310	360	430	329.9	329.9	350
★	CLS6006	600	150	845.8	12830	410	560	430	329.9	329.9	456
★	CLS60012	600	300	845.8	25710	560	860	430	329.9	329.9	640
★	CLS8002	800	50	1176.9	5882	355	405	505	387.1	387.1	549
★	CLS8006	800	150	1176.9	17645	455	605	505	387.1	387.1	709
★	CLS80012	800	300	1176.9	35370	605	905	505	387.1	387.1	950
★	CLS10002	1000	50	1466.4	7329	385	435	560	432.1	432.1	729
★	CLS10006	1000	150	1466.4	21986	485	635	560	432.1	432.1	921
★	CLS100012	1000	300	1466.4	43950	635	935	560	432.1	432.1	1210
