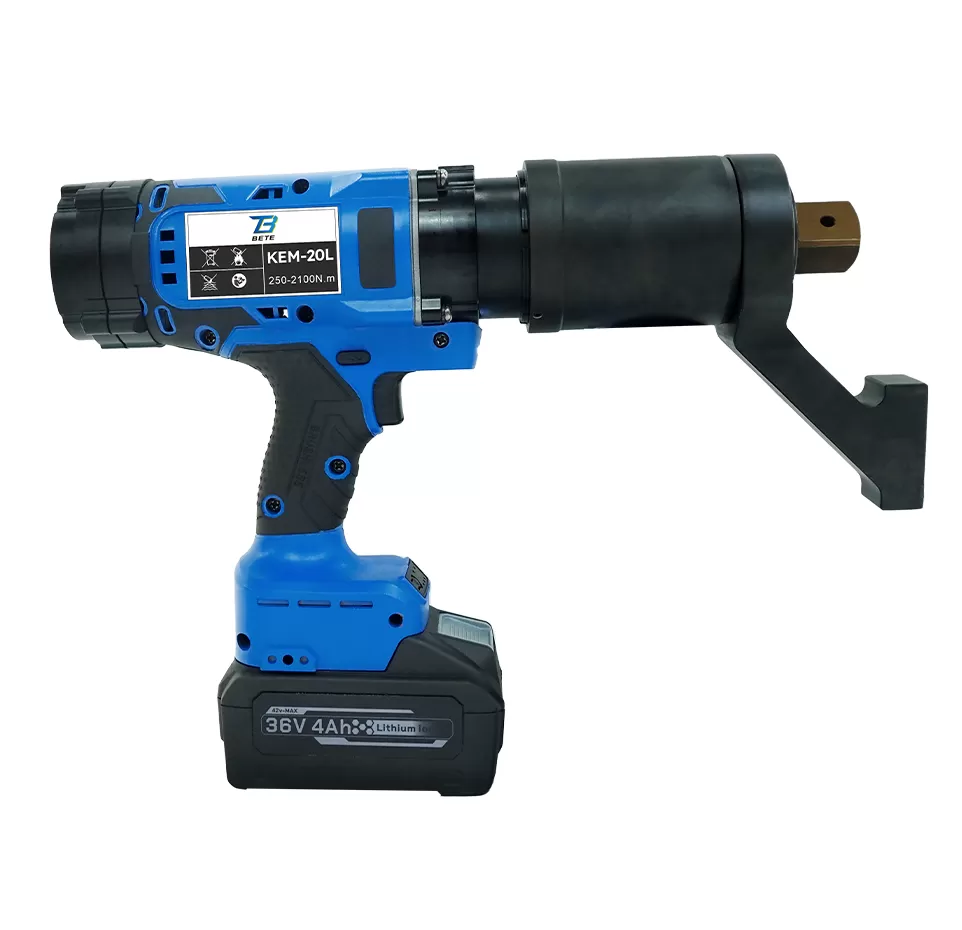

High-power brushless DC motor, stable torque output
Color LCD display, programmable torque, real-time torque & angle indication
Torque range: 100–12000 N ·m
Torque accuracy: ±5%, repeatability: ±3%
Intelligent control: data recording, abnormal torque alarm
High-strength planetary gearbox, high torque, lightweight
Automatic reaction arm release
Optional Bluetooth & Wi-Fi, support smart socket connection
Optional 36V/8 .0Ah lithium battery, long endurance
Optional backpack battery pack for heavy-duty continuous work

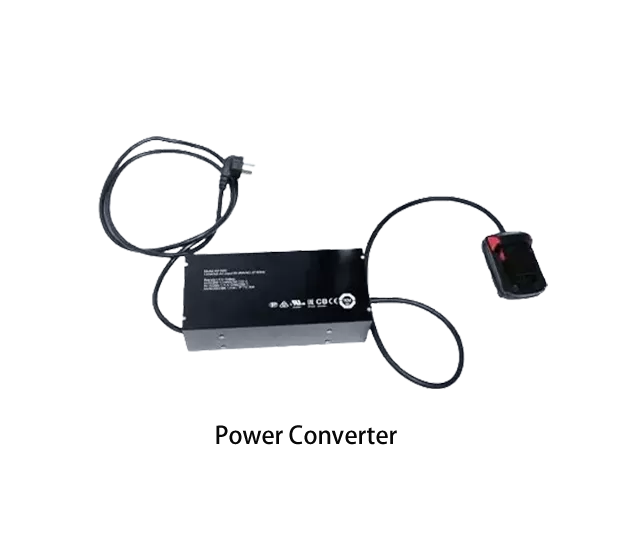

Optional power converter for uninterrupted operation
| Model | Min Torque (N.m) | Max Torque (N.m) | Square Drive S (mm) | D (mm) | L (mm) | H1 (mm) | H2 (mm) | R1 (mm) | R2 (mm) | Weight (kg) | Max Speed (rpm) |
| KEM-05L | 100 | 500 | 3/4” | 65 | 310 | 80 | 298 | 53 | 105 | 4.3 | 32 |
| KEM-10L | 130 | 1000 | 3/4” | 69 | 319 | 80 | 298 | 53 | 105 | 4.8 | 16 |
| KEM-15L | 200 | 1600 | 1” | 78 | 364 | 80 | 298 | 66 | 126 | 5.2 | 8.5 |
| KEM-20L | 250 | 2100 | 1” | 78 | 364 | 80 | 298 | 66 | 126 | 5.5 | 8 |
| KEM-30L | 480 | 3100 | 1” | 88 | 387 | 80 | 298 | 70 | 150 | 7.5 | 5.5 |
| KEM-40L | 650 | 4000 | 1” | 98 | 395 | 80 | 298 | 75 | 150 | 9.5 | 4 |
| KEM-50L | 850 | 5000 | 1-1/2” | 110 | 430 | 80 | 298 | 82.5 | 157.5 | 10 | 3.2 |
| KEM-60L | 1100 | 6000 | 1-1/2” | 110 | 430 | 80 | 298 | 82.5 | 157.5 | 12 | 2.7 |
| KEM-80L | 1900 | 8000 | 1-1/2” | 126 | 469 | 80 | 298 | 105 | 200 | 14 | 2 |
| KEM-100L | 2000 | 10000 | 1-1/2” | 126 | 480 | 80 | 298 | 105 | 200 | 16 | 1.7 |
| KEM-120L | 2400 | 12000 | 1-1/2” | 126 | 487 | 80 | 298 | 105 | 200 | 18 | 1.7 |
