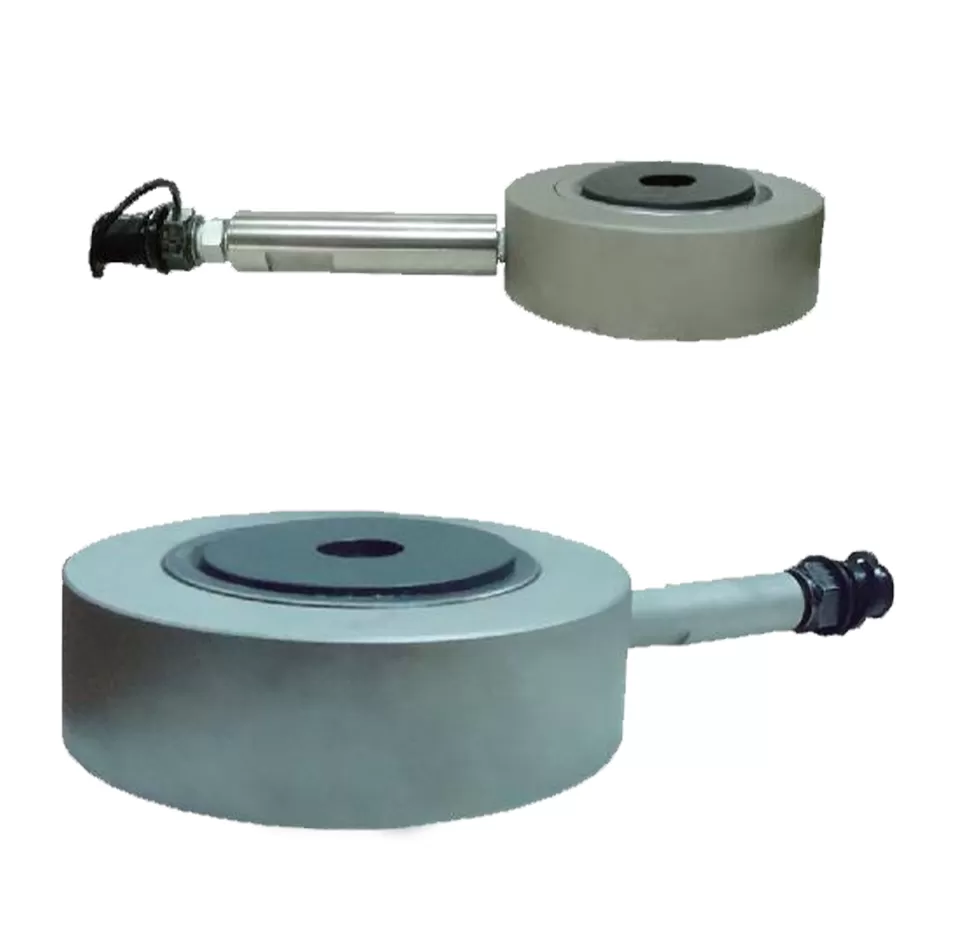

Ultra-slim & compact, portable with obstruction-free operation
Ultra-slim flat design, ideal for applications unsuitable for standard cylinders
Precision height adjustment with accuracy up to 0.01 mm
High-strength alloy steel for improved service life and strength
Self-locking system maintains load for a long time after pump removal
| Model | Ton (t) | Stroke (mm) | Pressure Area (cm) | Oil Volume (cm) | Closed Height A(mm) | Extended Height (mm) | Outer Dia. D(mm) | Inner Dia. E(mm) | Ram Dia. (mm) | Weight (kg) |
| SMC100-10 | 100 | 10 | 50.2 | 50 | 41 | 51 | 120 | 80 | 80 | 3.5 |
| SMC100-15 | 100 | 15 | 50.2 | 75 | 46 | 61 | 120 | 80 | 80 | 3.9 |
| SMC150-10 | 150 | 10 | 78.5 | 79 | 41 | 51 | 150 | 100 | 100 | 5.7 |
| SMC150-15 | 150 | 15 | 78.5 | 118 | 46 | 61 | 150 | 100 | 100 | 6.1 |
| SMC200-10 | 200 | 10 | 103.8 | 104 | 43 | 53 | 175 | 115 | 115 | 8.1 |
| SMC200-15 | 200 | 15 | 103.8 | 156 | 48 | 63 | 175 | 115 | 115 | 8.5 |
| SMC200-20 | 200 | 20 | 103.8 | 208 | 53 | 73 | 175 | 115 | 115 | 9 |
| SMC300-10 | 300 | 10 | 153.9 | 154 | 47 | 57 | 210 | 140 | 140 | 12.8 |
| SMC300-15 | 300 | 10 | 153.9 | 231 | 52 | 67 | 210 | 140 | 140 | 13.2 |
