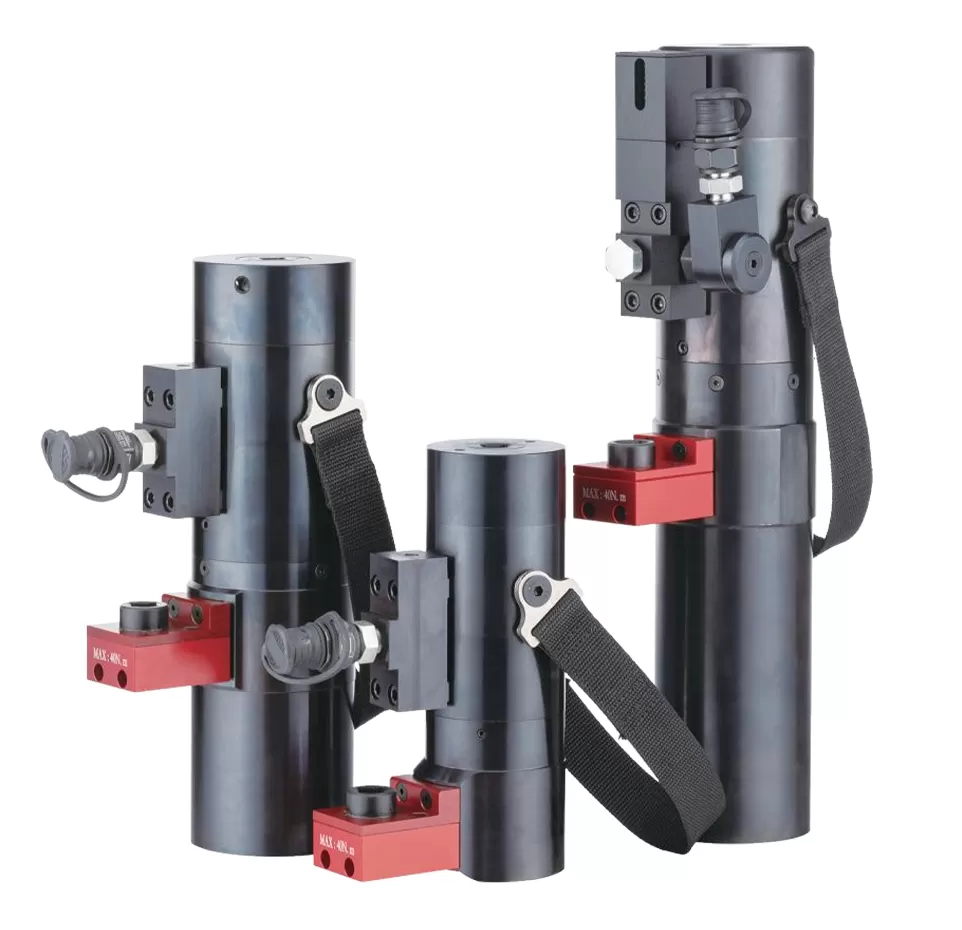

With advantages of light, fast, efficient and accurate
Small outside diameter with strong force, suitable to use in narrow spaces
Spring automatic recovery, with over stroke protection, suitable for frequent use
700-1500 bar working pressure
Can work with ultra-high pressure electric stretch pump
| Model | Bolt Size (M) | A/F (S) | Stretch Force (kN) | Cylinder Area (mm) | Stroke (mm) | Outside Diameter (mm) | Height (mm) | Pressure (MPa) |
| HTE-M30-FD14 | 30*4 | 46 | 656 | 4373 | 8 | 82 | 200 | 150 |
| HTE-M36-FD1 | 36*4 | 55 | 741 | 4945 | 10 | 82.5 | 410 | 150 |
| HTE-M36-FD2 | 36*4 | 55 | 741 | 4945 | 8 | 82.5 | 360 | 150 |
| HTE-M36-FD3 | 36*4 | 55 | 741 | 5766 | 10 | 89.15 | 260 | 150 |
| HTE-M36-FD4 | 36*4 | 55 | 741 | 4945 | 10 | 82.5 | 445 | 150 |
| HTE-M36-FD6 | 36*4 | 55 | 865 | 5766 | 10 | 92 | 274 | 150 |
| HTE-M36-FD10 | 36*4 | 55 | 741 | 4945 | 10 | 82.5 | 480 | 150 |
| HTE-M36-FD11 | 36*4 | 55 | 741 | 4945 | 8 | 82.5 | 480 | 150 |
| HTE-M36-FD13 | 36*4 | 55 | 662 | 4906 | 8 | 92 | 210 | 135 |
| HTE-M36-FD17 | 36*4 | 55 | 741 | 4945 | 8 | 82.5 | 350 | 150 |
| HTE-M36-FD19 | 36*4 | 55 | 925 | 6856 | 10 | 98 | 400 | 135 |
| HTE-M39-FD9 | 39*4 | 60 | 845 | 5639 | 10 | 91 | 428 | 150 |
| HTE-M42-FD7 | 42*4.5 | 65 | 965 | 6434 | 10 | 98 | 300 | 150 |
| HTE-M45-FD15 | 45*4.5 | 70 | 1149 | 8513 | 10 | 112 | 279 | 135 |
| HTE-M48-FD5 | 48*4.5 | 75 | 1277 | 8517 | 10 | 112 | 300 | 150 |
| HTE-M52-FD18 | 52*5 | 80 | 2196 | 16269 | 12 | 122 | 314 | 135 |
| HTE-M56-FD21 | 56*5.5 | 85 | 1543 | 11429 | 12 | 131 | 358 | 135 |
| HTE-M64-FD16 | 64*6 | 95 | 2196 | 16269 | 12 | 148 | 350 | 135 |
