Hollow plunger design for both pushing and pulling with fixtures
Built-in safety valve protects against overload
Double-acting cylinder with fast return speed
Composite coating for excellent corrosion resistance

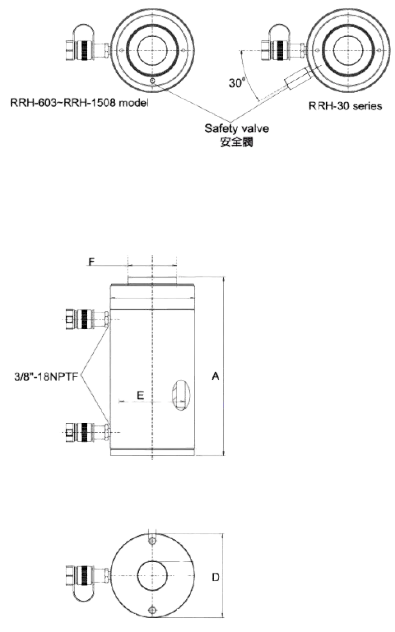

| Handle Type | Model | Ton (t) | Stroke (mm) | Force (t) Push | Force (t) Pull | Pressure Area (mm) Push | Pressure Area (mm) Pull | Oil Volume (cm) Push | Oil Volume (cm) Pull | Closed Height A (mm) | Extended Height B (mm) | Inner Dia. D (mm) | Outer Dia. E (mm) | Ram Dia. F (mm) | Weight (kg) |
| ▲ | RRH307 | 30 | 178 | 326 | 213 | 46.6 | 30.4 | 829 | 541 | 330 | 508 | 114 | 88.9 | 63.5 | 21 |
| ▲ | RRH3010 | 30 | 258 | 326 | 213 | 46.6 | 30.4 | 1202 | 784 | 431 | 689 | 114 | 88.9 | 63.5 | 27 |
| ▲ | RRH603 | 60 | 89 | 576 | 380 | 82.3 | 54.2 | 733 | 482 | 247 | 336 | 159 | 123.9 | 92.2 | 28 |
| ▲ | RRH606 | 60 | 166 | 576 | 380 | 82.3 | 54.2 | 1366 | 900 | 323 | 489 | 159 | 123.9 | 92.2 | 35 |
| ▲ | RRH6010 | 60 | 257 | 576 | 380 | 82.3 | 54.2 | 2115 | 1393 | 438 | 695 | 159 | 123.9 | 92.2 | 45 |
| ▲ | RRH1001 | 100 | 38 | 931 | 612 | 133 | 87.4 | 505 | 333 | 165 | 203 | 213 | 165.1 | 127 | 33 |
| ▲ | RRH1003 | 100 | 76 | 931 | 612 | 133 | 87.4 | 1011 | 666 | 254 | 330 | 213 | 165.1 | 127 | 61 |
| ▲ | RRH1006 | 100 | 153 | 931 | 612 | 133 | 87.4 | 2035 | 1337 | 342 | 495 | 213 | 165.1 | 127 | 79 |
| ▲ | RRH10010 | 100 | 257 | 931 | 612 | 133 | 87.4 | 3420 | 2246 | 460 | 717 | 213 | 165.1 | 127 | 106 |
| ▲ | RRH1508 | 150 | 203 | 1429 | 718 | 204.1 | 102.6 | 4144 | 2083 | 349 | 552 | 247 | 190.5 | 152.4 | 111 |
