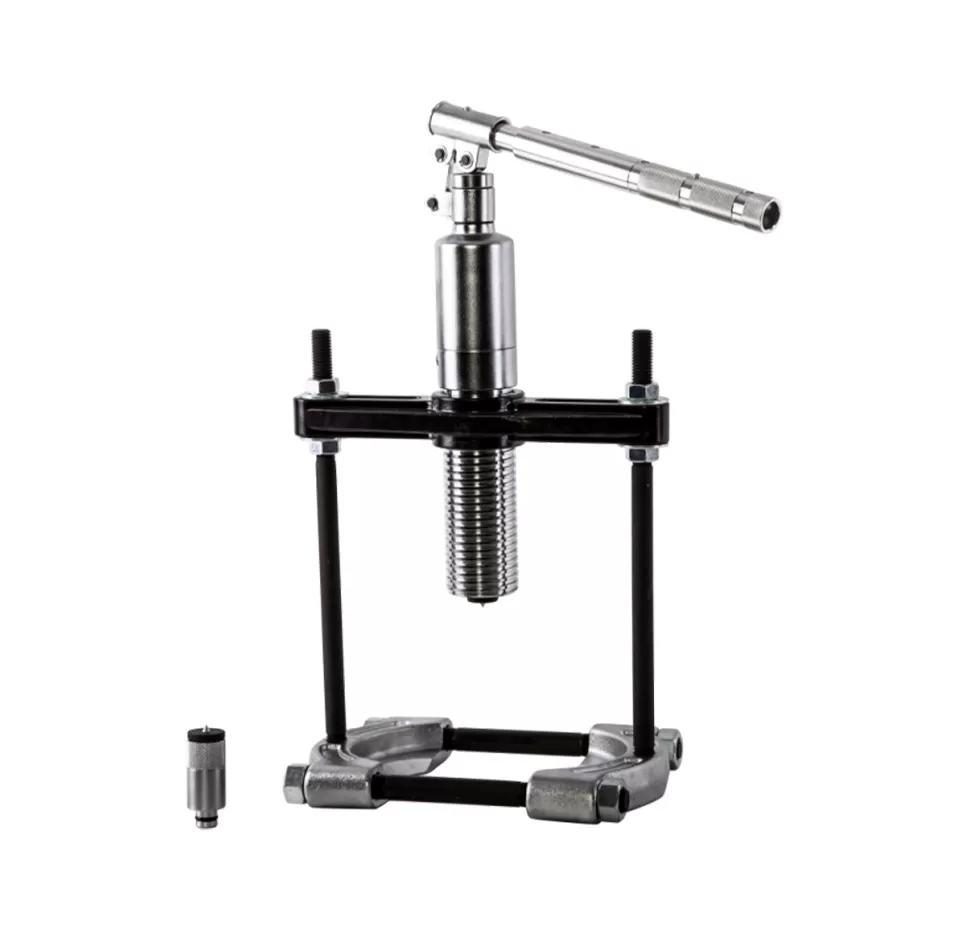

HSP Series Two Jaws Hydraulic Puller

Adopts an integrated hydraulic structure with stable pressure and powerful pulling force, widely used to disassemble bearings, gears and other interference-fit mechanical parts.

Get a Quote for Your Project Become a Distributor

Technical Specifications of HSP Series Two Jaws Hydraulic Puller

Technical Drawings

technical-specifications-of-hsp-series-two-jaws-hydraulic-puller

Product Parameter Table

ModelForce(t)Stroke(A)mmClaw Depth(mm)Claw Distance(mm)AClaw Distance(mm)BTop(mm)DTop(mm)ETop(mm)FWeight(kg)
HSP-6106702709518045239211
HSP-81088527095220502512214.3
HSP-12101285381120290602811823.8
