Aluminum alloy construction, lightweight & portable
7075-T6 aluminum alloy for maximum capacity with minimum weight
Anodized pads and cylinder body for wear resistance and longer service life
High-strength spring for fast plunger retraction
Multi-layer oil seal design to reduce friction and resist side load damage

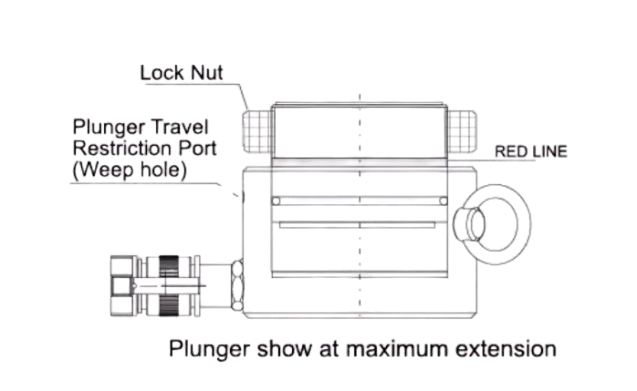

Top nut prevents plunger over-extension
All models supplied with 3/8 NPT quick coupler and dust cap
| Handle Type (S) | Model | Ton (t) | Stroke (mm) | Pressure Area (cm²) | Oil Volume (cm³) | Closed Height A(mm) | Extended Height (mm) | Outer Dia. D(mm) | Inner Dia. E(mm) | Ram Dia. F(mm) | Weight (kg) |
| ★ | CLP602 | 60 | 50 | 86.6 | 432 | 125 | 175 | 140 | 105 | 96 | 16.5 |
| ★ | CLP1002 | 100 | 50 | 146.8 | 732 | 137 | 187 | 175 | 136.7 | 126 | 28.5 |
| ★ | CLP1602 | 160 | 45 | 231.3 | 1040 | 148 | 193 | 220 | 171.6 | 160 | 48.5 |
| ★ | CLP2002 | 200 | 45 | 285.6 | 1285 | 155 | 200 | 245 | 190.7 | 180 | 62.5 |
| ★ | CLP2502 | 260 | 45 | 366.8 | 1650 | 159 | 204 | 275 | 216.1 | 200 | 81.5 |
| ★ | CLP4002 | 400 | 45 | 559.9 | 2519 | 178 | 223 | 350 | 266.9 | 250 | 147.5 |
| ★ | CLP5002 | 520 | 45 | 730.6 | 3287 | 192 | 237 | 400 | 305 | 290 | 208 |
