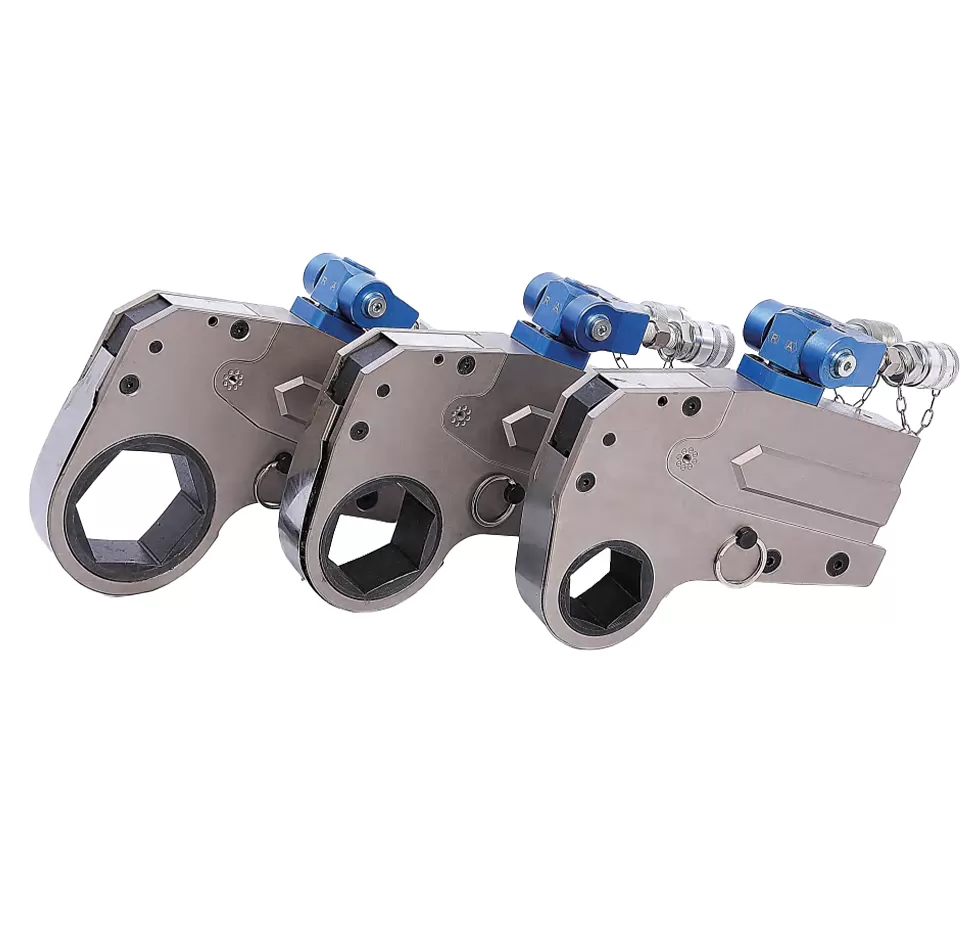

High torque, lighter weight, and low-profile design
Double-acting, high-speed, and large rotation angle
Compatible with multiple replaceable working heads (optional)
360° rotating hose connector, suitable for compact spaces and easy positioning
Torque range: 232–44,593 N·m; torque accuracy up to ±3%
The wrench components are fully designed for high strength, with an integral reaction arm. It features no space restrictions during use, and is durable and reliable
Expandable metric and imperial hex inserts and sockets
Maximizes the use of high-strength lightweight metals
Customized design available for special requirements
| Model | Torque Value (N.m) | Nut Opposite Side (mm) | L (mm) | H1 (mm) | H2 (mm) | W1 (mm) | W2 (mm) | Power Head Weight (kg) | Working Head Weight (kg) |
| 2LOW-CP | 232-2328 | 19-55 | 196 | 102 | 126 | 32 | 66 | 1.2 | 1.6 |
| 241-2414 | 60 | 196 | 105 | 129 | 32 | 66 | 1.2 | 1.7 | |
| 3LOW-CP | 475-3327 | 46-60 | 196 | 113 | 201 | 38 | 77 | 1.5 | 2.2 |
| 4LOW-CP | 585-2510 | 34-36 | 245 | 136 | 177 | 42 | 77 | 2.3 | 4.4 |
| 585-5021 | 41 | 245 | 136 | 177 | 42 | 77 | 2.3 | 4.4 | |
| 585-5858 | 41-65 | 246 | 146 | 187 | 42 | 77 | 2.3 | 4.6 | |
| 647-6474 | 70-80 | 246 | 146 | 187 | 42 | 77 | 2.3 | 4.6 | |
| 8LOW-CP | 1094-10941 | 41-95 | 300 | 169 | 207 | 53 | 77 | 3.3 | 8 |
| 1177-11774 | 100-105 | 301 | 179 | 216 | 53 | 77 | 3.3 | 8.4 | |
| 14LOW-CP | 1852-18521 | 50-115 | 361 | 204 | 239 | 64 | 99 | 5.5 | 11.5 |
| 18LOW-CP | 2695-26958 | 65-130 | 388 | 231 | 264 | 71 | 109 | 6.5 | 14.3 |
| 32LOW-CP | 4188-41882 | 110-155 | 430 | 272 | 303 | 85 | 131 | 11.5 | 29 |
| 4459-44593 | 160-175 | 441 | 285 | 315 | 85 | 131 | 11.5 | 30 |
1. Custom Protective Lining
1:1 3D Molded: Custom-made to fit the exact contours of the hydraulic wrench, ensuring a snug fit that prevents tool shifting and scratches.
High-density lining: Highly durable and resistant to collapse, effectively cushioning against bumps during long-distance transport.
2. Air-Rated Shipping Case
The case is lightweight yet sturdy, with high compression resistance and impact resistance; it remains undamaged even under heavy stacking pressure. It complies with air freight standards and is easy to transport and relocate.
Features dual latches and rubber gaskets to provide waterproof, dustproof, and moisture-proof protection for internal precision components.
3. Secondary Logistics Reinforcement
Reinforced Outer Carton: Made of thick, high-corrugated cardboard and printed with international storage and shipping standard markings.
Palletization: Bulk shipments are placed on standard wooden pallets, fitted with corner protectors, strapping bands, and stretch wrap.
Container Stacking: Goods are loaded scientifically and arranged tightly to prevent shifting during transit.
