Accuracy: ±3%

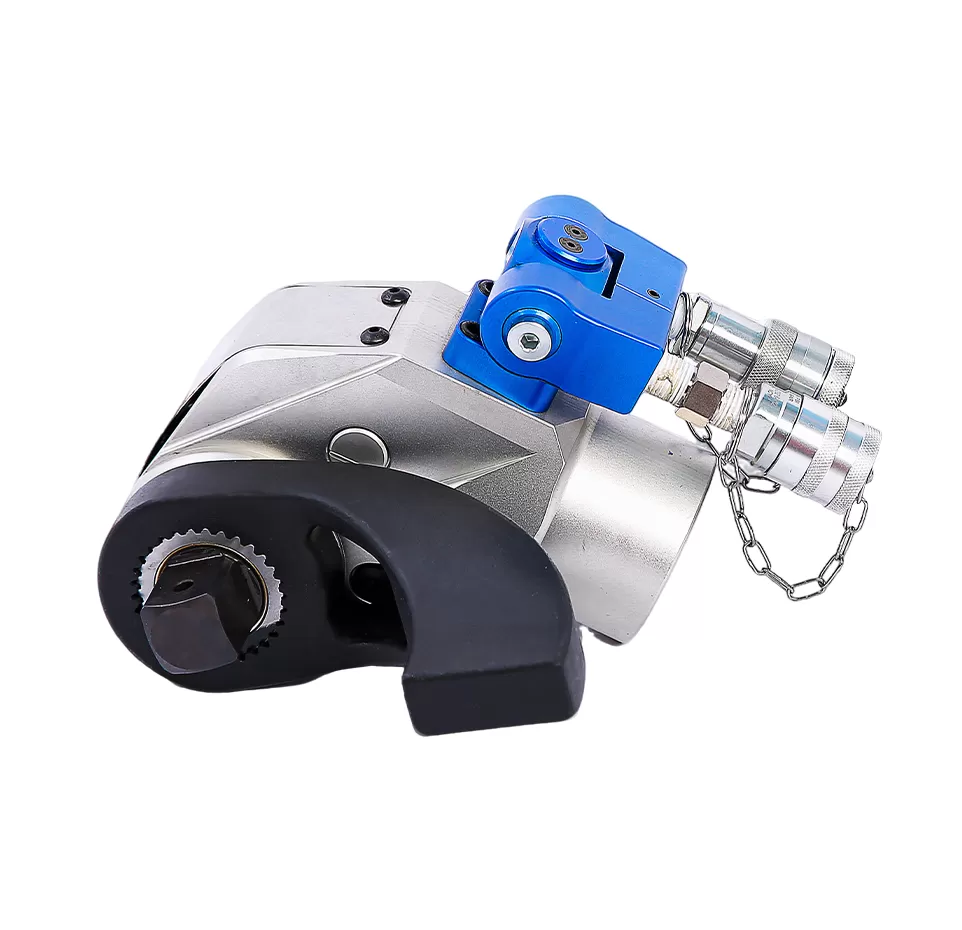

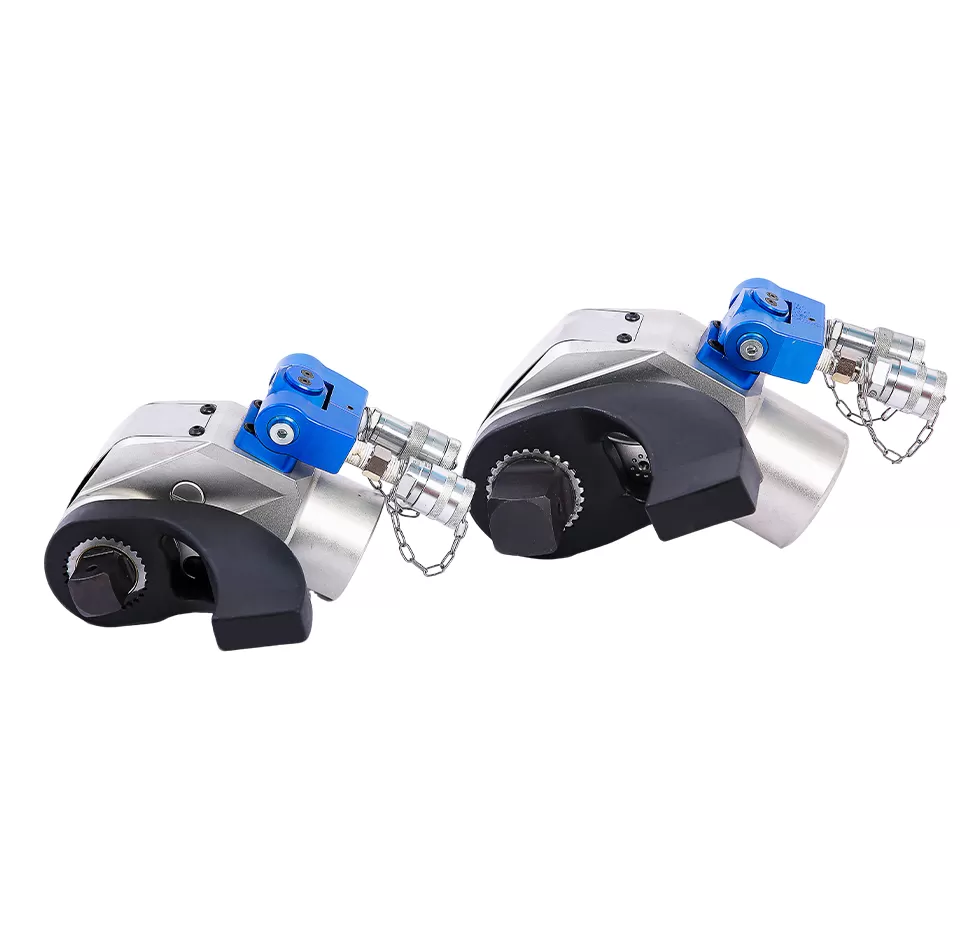

One-piece fuselage made of aluminum-iron alloy, featuring light weight, high strength and high toughness

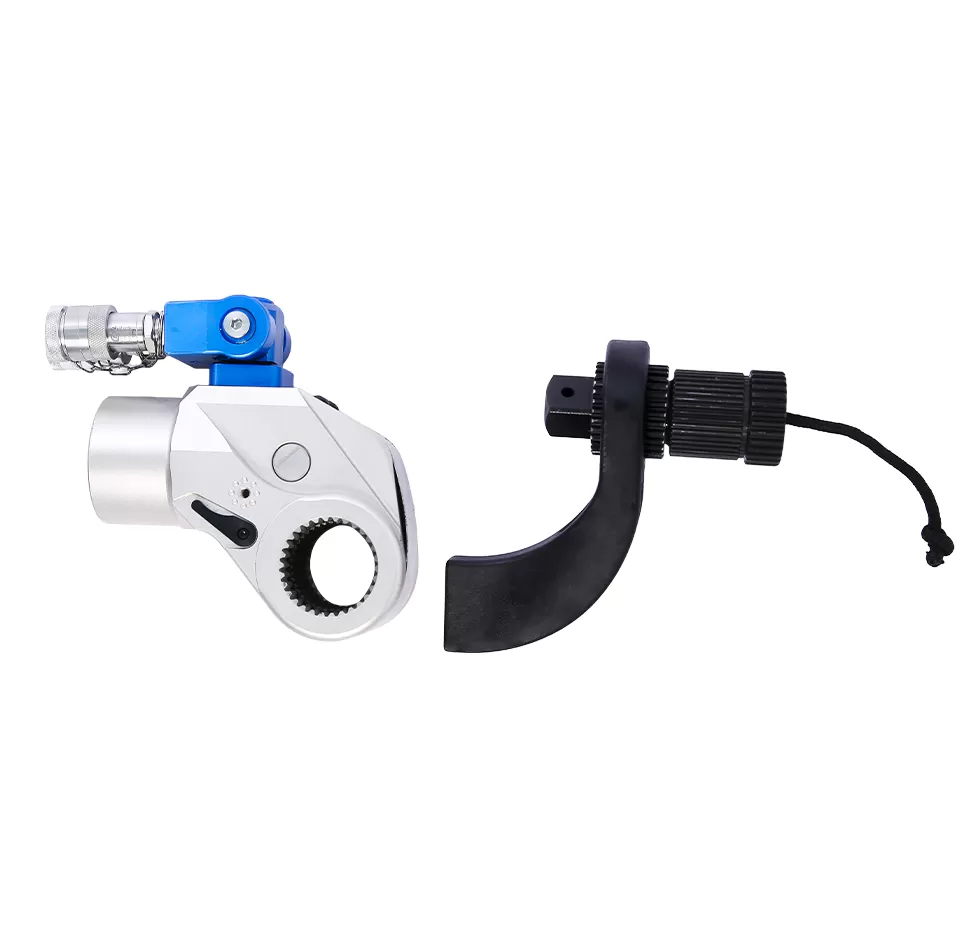

Front-mounted reaction arm design: with a small longitudinal dimension, it is more suitable for narrow spaces
The reaction arm is positioned at the square drive of the drive shaft, eliminating eccentric load
360°×180° rotating oil pipe joint, allowing unrestricted use regardless of space conditions
Customizable force arm according to customers' actual needs
| Model | Torque Value (N.m) | Nut Size (M) | H (mm) | W (mm) | L (mm) | R (mm) | Weight (kg) | Drive Shaft |
| MINI-07 | 104-1040 | 14-27 | 106.9 | 45.3 | 105.2 | 25 | 1.4 | 3/4" |
| MINI-1 | 174-1741 | 18-36 | 124.9 | 55.2 | 127.9 | 28.6 | 2 | 3/4" |
| MINI-3 | 402-4025 | 24-48 | 160.2 | 73.7 | 165.9 | 38.1 | 4.3 | 1" |
| MINI-5 | 726-7267 | 30-56 | 188.2 | 85.9 | 119.5 | 47.2 | 7.1 | 1-1/2" |
| MINI-8 | 1052-10521 | 36-64 | 212.7 | 98 | 224.2 | 52.5 | 9.4 | 1-1/2" |
| MINI-10 | 1592-15921 | 42-72 | 236 | 110.5 | 252 | 60.3 | 13.3 | 1-1/2" |

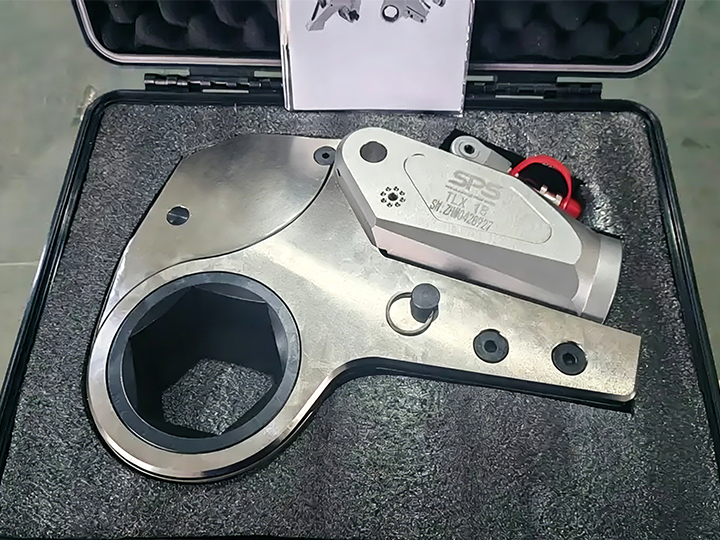

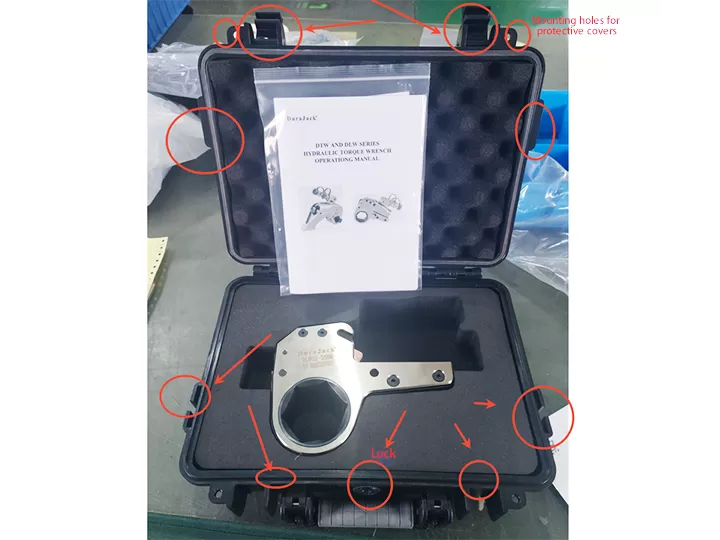

1. Custom Protective Lining
1:1 3D Molded: Custom-made to fit the exact contours of the hydraulic wrench, ensuring a snug fit that prevents tool shifting and scratches.
High-density lining: Highly durable and resistant to collapse, effectively cushioning against bumps during long-distance transport.

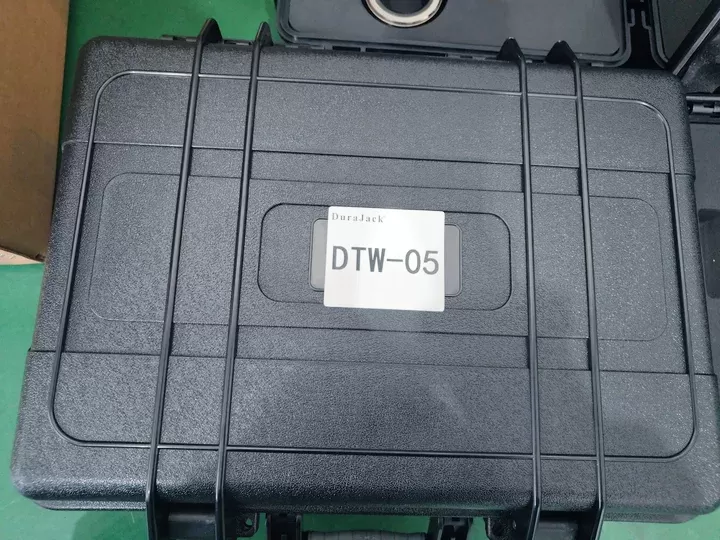

2. Air-Rated Shipping Case
The case is lightweight yet sturdy, with high compression resistance and impact resistance; it remains undamaged even under heavy stacking pressure. It complies with air freight standards and is easy to transport and relocate.
Features dual latches and rubber gaskets to provide waterproof, dustproof, and moisture-proof protection for internal precision components.
3. Secondary Logistics Reinforcement

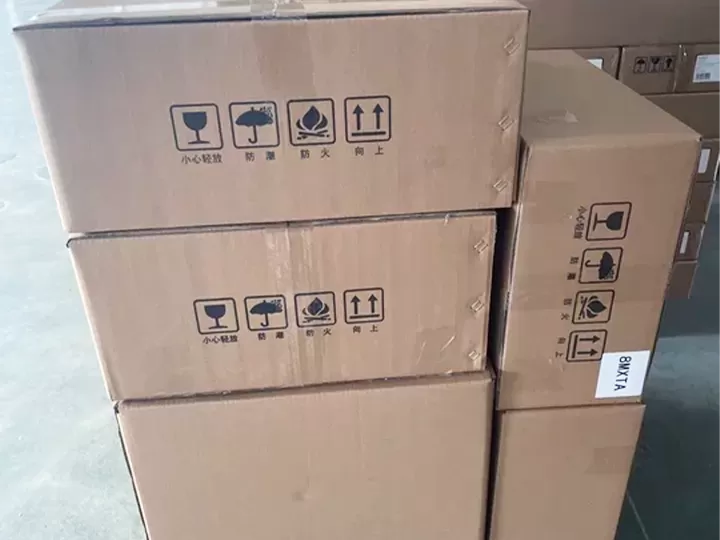

Reinforced Outer Carton: Made of thick, high-corrugated cardboard and printed with international storage and shipping standard markings.

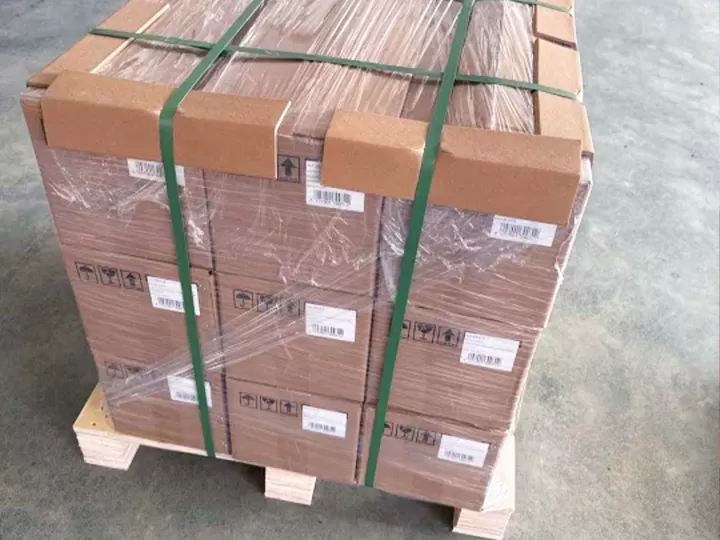

Palletization: Bulk shipments are placed on standard wooden pallets, fitted with corner protectors, strapping bands, and stretch wrap.
Container Stacking: Goods are loaded scientifically and arranged tightly to prevent shifting during transit.
