All CLSG Series models are equipped with base mounting holes
Single-acting, gravity return
Piston rod & cylinder inner wall with hard chrome plating for wear and corrosion resistance
Dust ring reduces contamination adhesion
Integral top nut protects piston rod from over-travel
Powder-coated surface for good appearance, corrosion and rust resistance
Each model includes 3/8 NPT quick coupler and dust cap

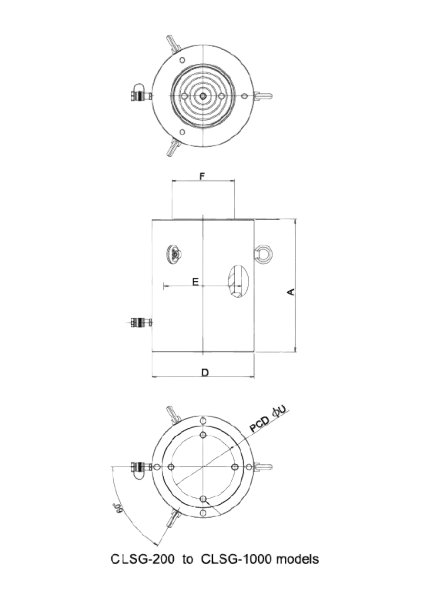

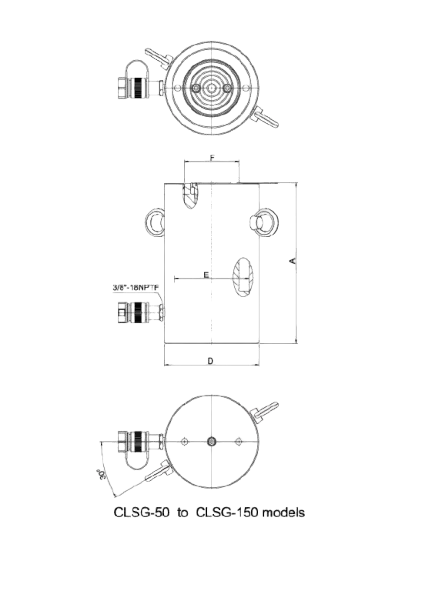

| Handle Type (S) | Model | Ton (t) | Stroke (mm) | Pressure Area (cm²) | Oil Volume (cm³) | Closed Height A(mm) | Extended Height B(mm) | Outer Dia. D(mm) | Inner Dia. E(mm) | Ram Dia. F(mm) | Weight (kg) |
| ★ | CLSG-502 | 50 | 50 | 77 | 385 | 162 | 212 | 130 | 95 | 70 | 17 |
| ★ | CLSG-504 | 50 | 100 | 77 | 770 | 212 | 312 | 130 | 95 | 70 | 20 |
| ★ | CLSG-506 | 50 | 150 | 77 | 1155 | 262 | 412 | 130 | 95 | 70 | 23 |
| ★ | CLSG-508 | 50 | 200 | 77 | 1540 | 312 | 512 | 130 | 95 | 70 | 27 |
| ★ | CLSG-5010 | 50 | 250 | 77 | 1924 | 362 | 612 | 130 | 95 | 70 | 31 |
| ★ | CLSG-5012 | 50 | 300 | 77 | 2309 | 412 | 712 | 130 | 95 | 70 | 34 |
| ★ | CLSG-1002 | 100 | 50 | 132.7 | 664 | 182 | 232 | 165 | 130 | 95 | 19 |
| ★ | CLSG-1004 | 100 | 100 | 132.7 | 1327 | 232 | 332 | 165 | 130 | 95 | 29 |
| ★ | CLSG-1006 | 100 | 150 | 132.7 | 1991 | 282 | 432 | 165 | 130 | 95 | 40 |
| ★ | CLSG-1008 | 100 | 200 | 132.7 | 3655 | 332 | 532 | 165 | 130 | 95 | 50 |
| ★ | CLSG-10010 | 100 | 250 | 132.7 | 3318 | 382 | 632 | 165 | 130 | 95 | 61 |
| ★ | CLSG-10012 | 100 | 300 | 132.7 | 3982 | 432 | 732 | 165 | 130 | 95 | 71 |
| ★ | CLSG-1502 | 150 | 50 | 198.6 | 993 | 196 | 246 | 205 | 159 | 114 | 39 |
| ★ | CLSG-1504 | 150 | 100 | 198.6 | 1988 | 246 | 346 | 205 | 159 | 114 | 52 |
| ★ | CLSG-1506 | 150 | 150 | 198.6 | 2978 | 296 | 446 | 205 | 159 | 114 | 65 |
| ★ | CLSG-1508 | 150 | 200 | 198.6 | 3971 | 346 | 546 | 205 | 159 | 114 | 78 |
| ★ | CLSG-15010 | 150 | 250 | 198.6 | 4954 | 396 | 646 | 205 | 159 | 114 | 92 |
| ★ | CLSG-15012 | 150 | 300 | 198.6 | 5957 | 446 | 746 | 205 | 159 | 114 | 105 |
| ★ | CLSG-2002 | 200 | 50 | 265.6 | 1330 | 215 | 266 | 235 | 184 | 133 | 55 |
| ★ | CLSG-2006 | 200 | 150 | 265.6 | 3989 | 316 | 466 | 235 | 184 | 133 | 91 |
| ★ | CLSG-20012 | 200 | 300 | 265.6 | 7977 | 466 | 766 | 235 | 184 | 133 | 146 |
| ★ | CLSG-2502 | 250 | 50 | 366.4 | 1832 | 235 | 285 | 275 | 216 | 165 | 102 |
| ★ | CLSG-2506 | 250 | 150 | 366.4 | 5497 | 335 | 485 | 275 | 216 | 165 | 136 |
| ★ | CLSG-25012 | 250 | 300 | 366.4 | 10993 | 485 | 785 | 275 | 216 | 165 | 207 |
| ★ | CLSG-3002 | 300 | 50 | 456.2 | 2281 | 312 | 362 | 310 | 241 | 197 | 184 |
| ★ | CLSG-3006 | 300 | 150 | 456.2 | 6843 | 412 | 562 | 310 | 241 | 197 | 232 |
| ★ | CLSG-30012 | 300 | 300 | 456.2 | 13695 | 562 | 862 | 310 | 241 | 197 | 303 |
| ★ | CLSG-4002 | 400 | 50 | 559.9 | 2800 | 374 | 425 | 350 | 267 | 216 | 270 |
| ★ | CLSG-4006 | 400 | 150 | 559.9 | 8399 | 474 | 625 | 350 | 267 | 216 | 330 |
| ★ | CLSG-40012 | 400 | 300 | 559.9 | 16797 | 624 | 925 | 350 | 267 | 216 | 421 |
| ★ | CLSG-5002 | 500 | 50 | 730.6 | 3653 | 419 | 469 | 400 | 305 | 246 | 401 |
| ★ | CLSG-5006 | 500 | 150 | 730.6 | 10959 | 519 | 669 | 400 | 305 | 246 | 480 |
| ★ | CLSG-50012 | 500 | 300 | 730.6 | 21918 | 669 | 969 | 400 | 305 | 246 | 599 |
| ★ | CLSG-6002 | 600 | 50 | 855.3 | 4275 | 429 | 479 | 430 | 330 | 267 | 474 |
| ★ | CLSG-6006 | 600 | 150 | 855.3 | 12829 | 529 | 679 | 430 | 330 | 267 | 565 |
| ★ | CLSG-60012 | 600 | 300 | 855.3 | 25659 | 679 | 979 | 430 | 330 | 267 | 701 |
| ★ | CLSG-8002 | 800 | 50 | 1176.3 | 5881 | 474 | 524 | 505 | 387 | 317 | 741 |
| ★ | CLSG-8006 | 800 | 150 | 1176.3 | 17644 | 574 | 724 | 505 | 387 | 317 | 868 |
| ★ | CLSG-80012 | 800 | 300 | 1176.3 | 35288 | 724 | 1024 | 505 | 387 | 317 | 1058 |
| ★ | CLSG-10002 | 1000 | 50 | 1465.7 | 7329 | 564 | 614 | 560 | 432 | 343 | 1062 |
| ★ | CLSG-10006 | 1000 | 150 | 1465.7 | 21988 | 664 | 814 | 560 | 432 | 343 | 1213 |
| ★ | CLSG-100012 | 1000 | 300 | 1465.7 | 43972 | 814 | 1114 | 560 | 432 | 343 | 1439 |
