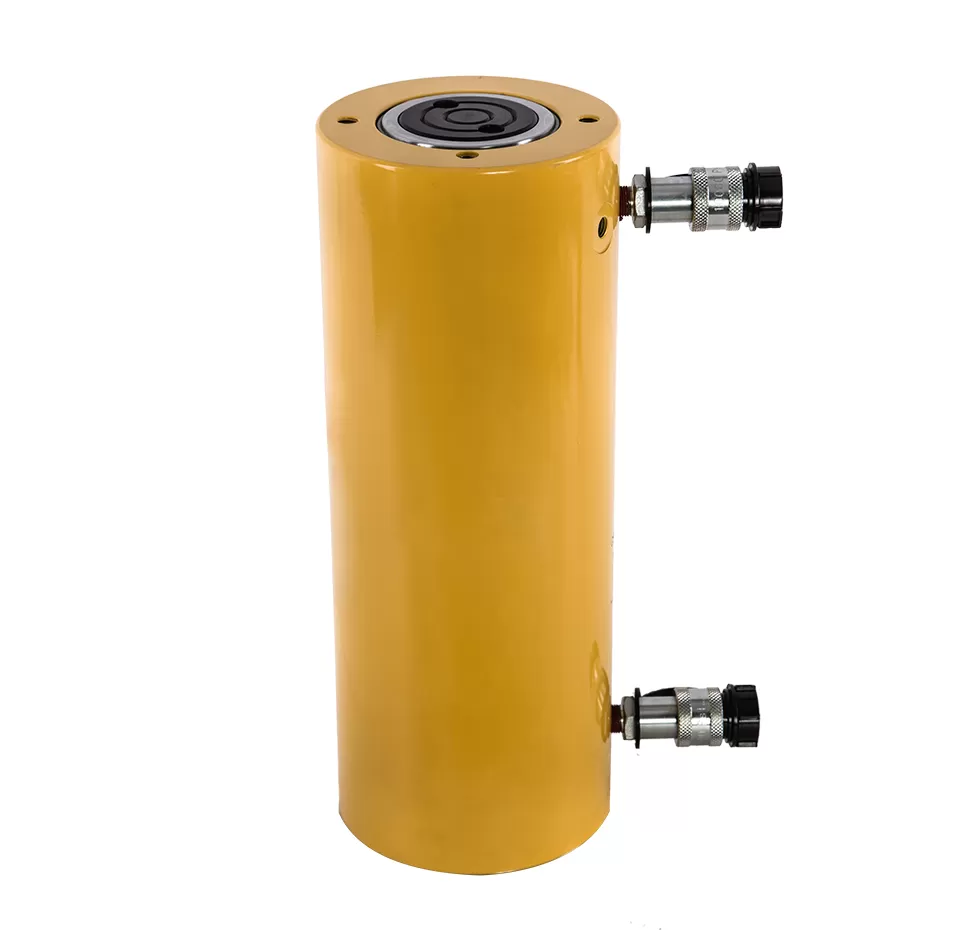

CLRG Series Double-acting High-tonnage Hydraulic Cylinder

CLRG Series equipped with base mounting holes
Double-acting hydraulic push and pull return
Hard chrome-plated piston rod, wear and corrosion resistant
Oil return circuit ﬁtted with safety valve to prevent overpressure damage
Replaceable groove block as standard accessory
Dust ring reduces contamination adhesion
Powder-coated surface for good appearance, corrosion and rust resistance
All models include 3/8 NPT quick coupler and dust cap

Hydraulic Cylinder Capacity Selection
Double-acting hydraulic jacks must be used with 4-port valve hydraulic pumps.
Hydraulic Power unit
Hydraulic cylinders above 1000 tons are also custom-manufactured.

Get a Quote for Your Project  Become a Distributor 

Technical Specifications of CLRG Series Double-acting High-tonnage Hydraulic Cylinder

Technical Drawings

Product Parameter Table

Handle Type(S)	Model	Ton (t)	Stroke (mm)	Force (t) Push	Force (t) Pull	Pressure Area(mm) Push	Pressure Area(mm) Pull	Oil Volume (cm) Push	Oil Volume (cm) Pull	Closed Height A (mm)	Extended Height B (mm)	Inner Dia. D (mm)	Outer Dia. E (mm)	Ram Dia. F (mm)	Weight (kg)
★	CLRG-502	50	50	539	269	77	38.5	385	192	162	212	130	99	70	17
	CLRG-504	50	100	539	269	77	38.5	770	385	212	312	130	99	70	20
	CLRG-506	50	150	539	269	77	38.5	1155	577	262	412	130	99	70	23
	CLRG-508	50	200	539	269	77	38.5	1540	770	312	512	130	99	70	27
	CLRG-5010	50	250	539	269	77	38.5	1924	962	362	612	130	99	70	31
	CLRG-5012	50	300	539	269	77	38.5	2309	1155	412	712	130	99	70	34
	CLRG-1002	100	50	929	433	132.7	61.9	664	309	179	229	165	130	95	29
	CLRG-1004	100	100	929	433	132.7	61.9	1327	619	229	329	165	130	95	34
	CLRG-1006	100	150	929	433	132.7	61.9	1991	928	279	429	165	130	95	40
	CLRG-1008	100	200	929	433	132.7	61.9	2655	1237	329	529	165	130	95	46
	CLRG-10010	100	250	929	433	132.7	61.9	3318	1546	379	629	165	130	95	53
	CLRG-10012	100	300	929	433	132.7	61.9	3982	1856	429	729	165	130	95	59
	CLRG-1502	150	50	1390	675	198.6	61.9	993	482	196	246	205	159	114	39
	CLRG-1504	150	100	1390	675	198.6	61.9	1986	965	246	346	205	159	114	52
	CLRG-1506	150	150	1390	675	198.6	61.9	2978	1447	296	446	205	159	114	65
	CLRG-1508	150	200	1390	675	198.6	61.9	3971	1930	346	546	205	159	114	78
	CLRG-15010	150	250	1390	675	198.6	61.9	4964	2412	396	646	205	159	114	92
	CLRG-15012	150	300	1390	675	198.6	61.9	5957	2895	446	745	205	159	114	105
	CLRG-2002	200	50	1861	889	265.9	127	1330	635	212	262	235	184	133.1	55
	CLRG-2006	200	150	1861	889	265.9	127	3989	1905	312	462	235	184	133.1	91
	CLRG-20012	200	300	1861	889	265.9	127	7977	3809	462	762	235	184	133.1	146
	CLRG-2502	250	50	2565	1068	366.4	152.6	1832	763	235	285	275	216	165.1	89
	CLRG-2506	250	150	2565	1068	366.4	152.6	5497	2289	335	485	275	216	165.1	136
	CLRG-25012	250	300	2565	1068	366.4	152.6	10993	4578	485	785	275	216	165.1	207
	CLRG-3002	300	50	3193	1060	456.2	151.4	2281	757	322	372	310	241	197.1	184
	CLRG-3006	300	150	3193	1060	456.2	151.4	6843	2270	422	572	310	241	197.1	232
	CLRG-30012	300	300	3193	1060	456.2	151.4	13685	4541	572	872	310	241	197.1	303
	CLRG-4002	400	50	3919	1354	559.9	193.5	2800	967	374	424	350	267	216	270
	CLRG-4006	400	150	3919	1354	559.9	193.5	8399	2902	474	624	350	267	216	330
	CLRG-40012	400	300	3919	1354	559.9	193.5	16797	5804	624	924	350	267	216	421
	CLRG-5002	500	50	5114	1733	730.6	247.6	3653	1238	419	469	400	305	248	401
	CLRG-5006	500	150	5114	1733	730.6	247.6	10959	3713	519	669	400	305	248	480
	CLRG-50012	500	300	5114	1733	730.6	247.6	21918	7427	669	969	400	305	248	599
	CLRG-6002	600	50	5987	2068	855.3	295.4	4276	1477	429	476	430	330	267	474
	CLRG-6006	600	150	5987	2068	855.3	295.4	12829	4431	529	679	430	330	267	565
	CLRG-60012	600	300	5987	2068	855.3	295.4	25659	8862	679	979	430	330	267	701
	CLRG-8002	800	50	8234	2709	1176.3	911.6	5881	1935	484	534	505	387	317	741
	CLRG-8006	800	150	8234	2709	1176.3	911.6	17644	5806	584	734	505	387	317	868
	CLRG-80012	800	300	8234	2709	1176.3	911.6	35288	11611	734	1034	505	387	317	1056
	CLRG-10002	1000	50	10260	3972	1465.7	1136	7329	2709	564	614	560	432	434	1062
	CLRG-10006	1000	150	10260	3972	1465.7	1136	21986	8126	664	841	560	432	434	1213
	CLRG-100012	1000	300	10260	3972	1465.7	1136	43972	16252	814	1114	560	432	434	1439
	CLRG-16006	1600	155	1600	5283	1762.58	538.6	35466	10837	825	980	710	540	450	2400
