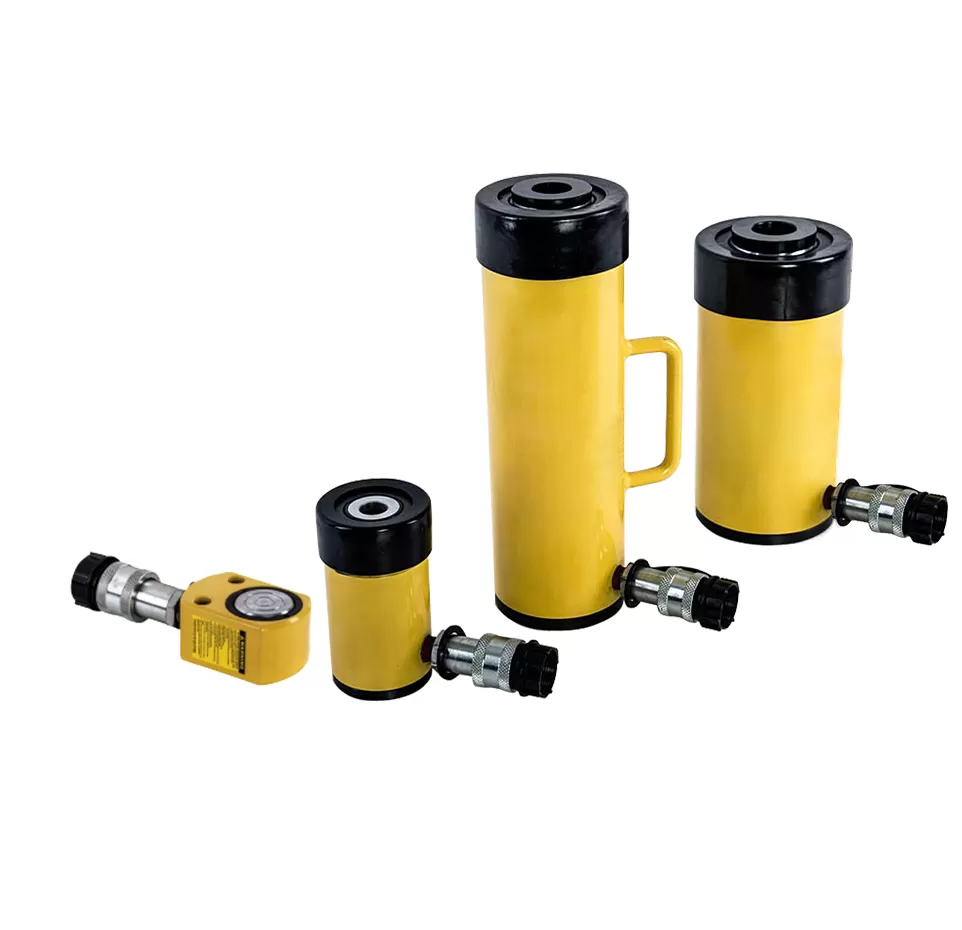

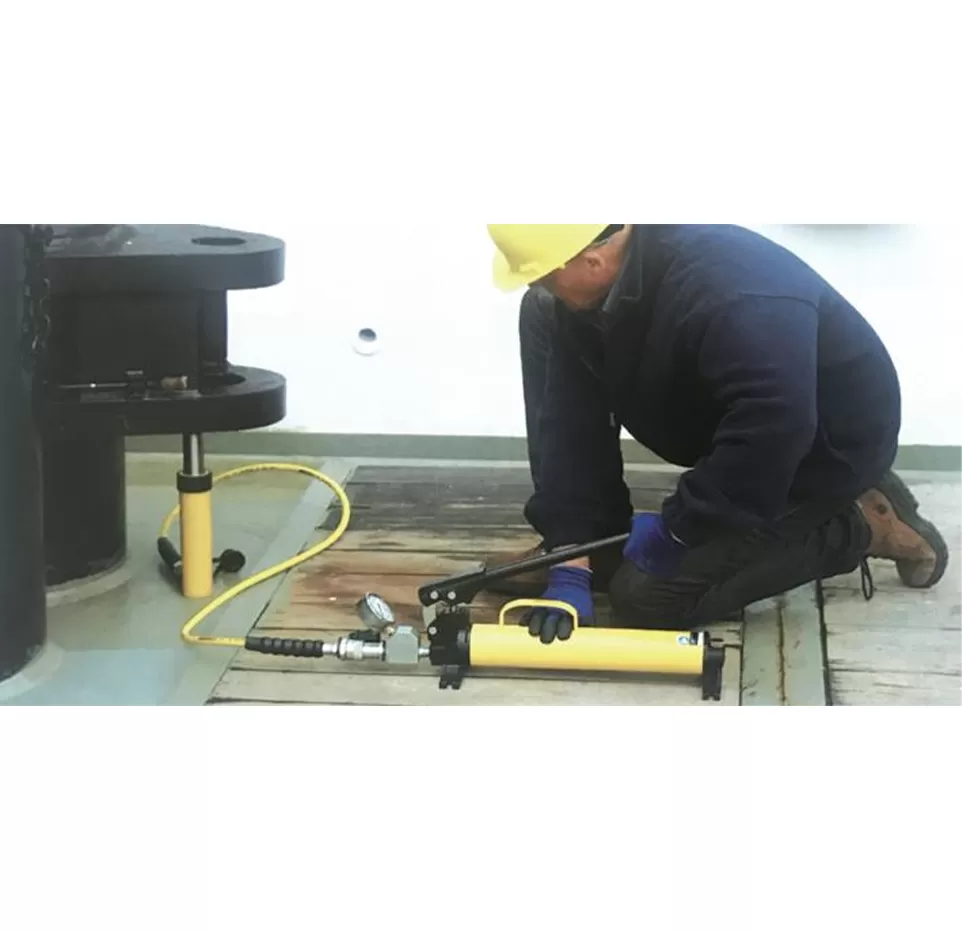

RC Series Single-acting Universal Hydraulic Cylinder

Single-acting cylinder, spring return for fast & easy operation
High-strength alloy steel piston, durable & long service life
Paint-coated surface for better corrosion resistance; equipped with handle for easy carrying

Get a Quote for Your Project  Become a Distributor 

Technical Specifications of RC Series Single-acting Universal Hydraulic Cylinder

Technical Drawings

Product Parameter Table

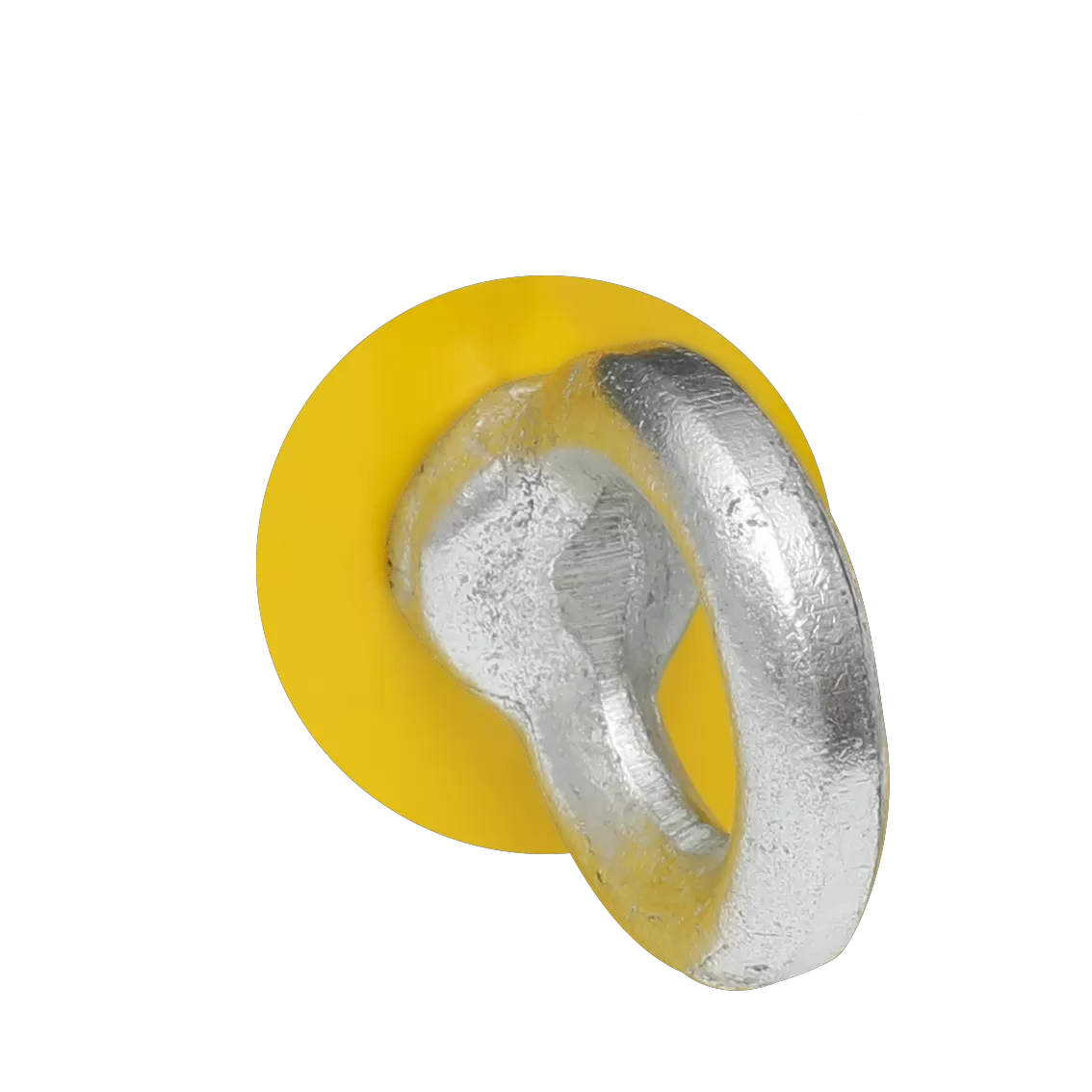

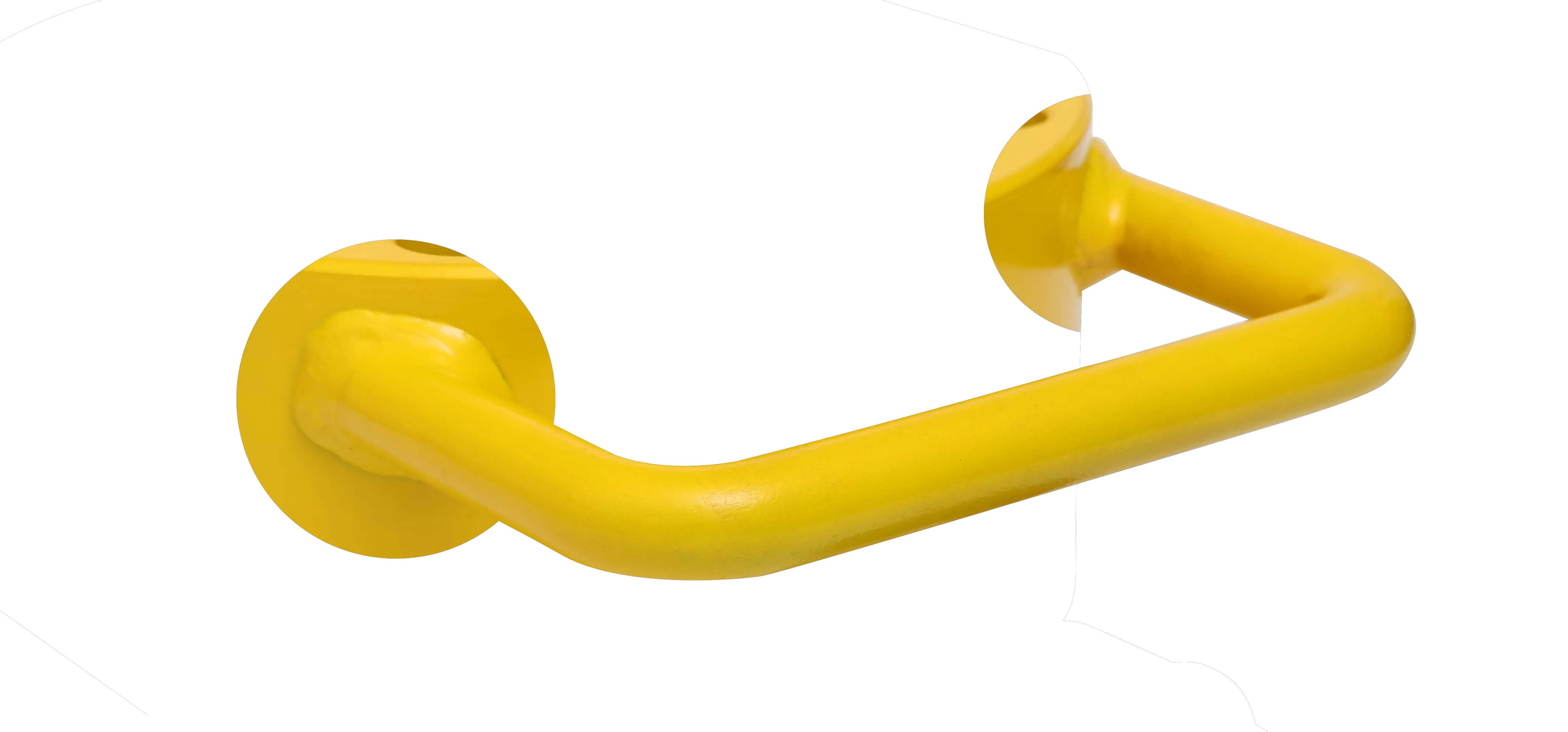

Handle Type (O)	Handle Type (S)	Model	Ton (t)	Stroke (mm)	Pressure Area (cm²)	Oil Volume (cm³)	Closed Height A(mm)	Extended Height (mm)	Outer Dia. D(mm)	Inner Dia. E(mm)	Ram Dia. F(mm)	Thread Length X(mm)	Weight (kg)
		RC50	5	16	6.5	11	42	58	28.7	25.4	1½"-16	28	1.1
		RC51	5	25	6.5	16	110	38	28.7	25.4	1½"-16	28	1.1
		RC53	5	76	6.5	50	165	38	28.7	25.4	1½"-16	28	1.5
		RC55	5	127	6.5	83	215	38	28.7	25.4	1½"-16	28	1.9
		RC57	5	177	6.5	115	273	38	28.7	25.4	1½"-16	28	2.4
		RC59	5	232	6.5	151	323	38	28.7	25.4	1½"-16	28	2.8
		RC101	10	26	14.5	38	89	57	42.9	38.1	2¼"-14	27	1.8
		RC102	10	54	14.5	78	121	57	42.9	38.1	2¼"-14	27	2.3
		RC104	10	105	14.5	152	171	57	42.9	38.1	2¼"-14	27	3.3
		RC106	10	156	14.5	226	247	57	42.9	38.1	2¼"-14	27	4.4
		RC108	10	203	14.5	294	298	57	42.9	38.1	2¼"-14	27	5.4
		RC1010	10	257	14.5	373	349	57	42.9	38.1	2¼"-14	27	6.4
		RC1012	10	304	14.5	441	400	57	42.9	38.1	2¼"-14	27	6.8
		RC1014	10	356	14.5	516	450	57	42.9	38.1	2¼"-14	27	8.2
		RC151	15	25	20.3	51	124	70	50.8	41.4	2¾"-16	30	3.3
		RC152	15	51	20.3	104	149	70	50.8	41.4	2¾"-16	30	4.1
		RC154	15	101	20.3	205	200	70	50.8	41.4	2¾"-16	30	5
		RC156	15	152	20.3	308	271	70	50.8	41.4	2¾"-16	30	6.8
		RC158	15	203	20.3	411	322	70	50.8	41.4	2¾"-16	30	8.2
		RC1510*	15	254	20.3	516	373	70	50.8	41.4	2¾"-16	30	9.5
		RC1512*	15	305	20.3	619	423	70	50.8	41.4	2¾"-16	30	10.9
		RC1514*	15	356	20.3	723	474	70	50.8	41.4	2¾"-16	30	11.8
		RC251	25	26	33.2	86	139	85	65	57.2	3"-12	49	5.9
		RC252	25	50	33.2	166	165	85	65	57.2	3"-12	49	6.4
		RC254	25	102	33.2	339	215	85	65	57.2	3"-12	49	8.2
		RC256	25	158	33.2	525	273	85	65	57.2	3"-12	49	10
		RC258	25	210	33.2	697	323	85	65	57.2	3"-12	49	12.2
		RC2510*	25	261	33.2	867	374	85	65	57.2	3"-12	49	14.1
		RC2512*	25	311	33.2	1033	425	85	65	57.2	3"-12	49	16.3
		RC2514	25	362	33.2	1202	476	85	65	57.2	3"-12	49	17.7
	■	RC308	30	209	42.1	880	387	102	73.2	57.2	-	-	18.1
	■	RC502	50	51	71.2	361	176	127	95.2	79.5	5"-12	55	15
	▲	RC504	50	101	71.2	719	227	127	95.2	79.5	5"-12	55	19.1
	▲	RC506	50	159	71.2	1131	282	127	95.2	79.5	5"-12	55	23.1
	▲	RC5013	50	337	71.2	2399	460	127	95.2	79.5	5"-12	55	37.6
▲	●	RC756	75	156	102.6	1601	285	147	114.3	95.2	5¾"-12	44	29.5
▲	★	RC7513*	75	333	102.6	3417	492	147	114.3	95.2	5¾"-12	44	59
▲	★	RC1006	100	168	133.6	2239	357	177	130.3	104.9	6¾"-12	44	59
▲	★	RC10010	100	260	133.6	3466	449	177	130.3	104.9	6¾"-12	44	72.6
