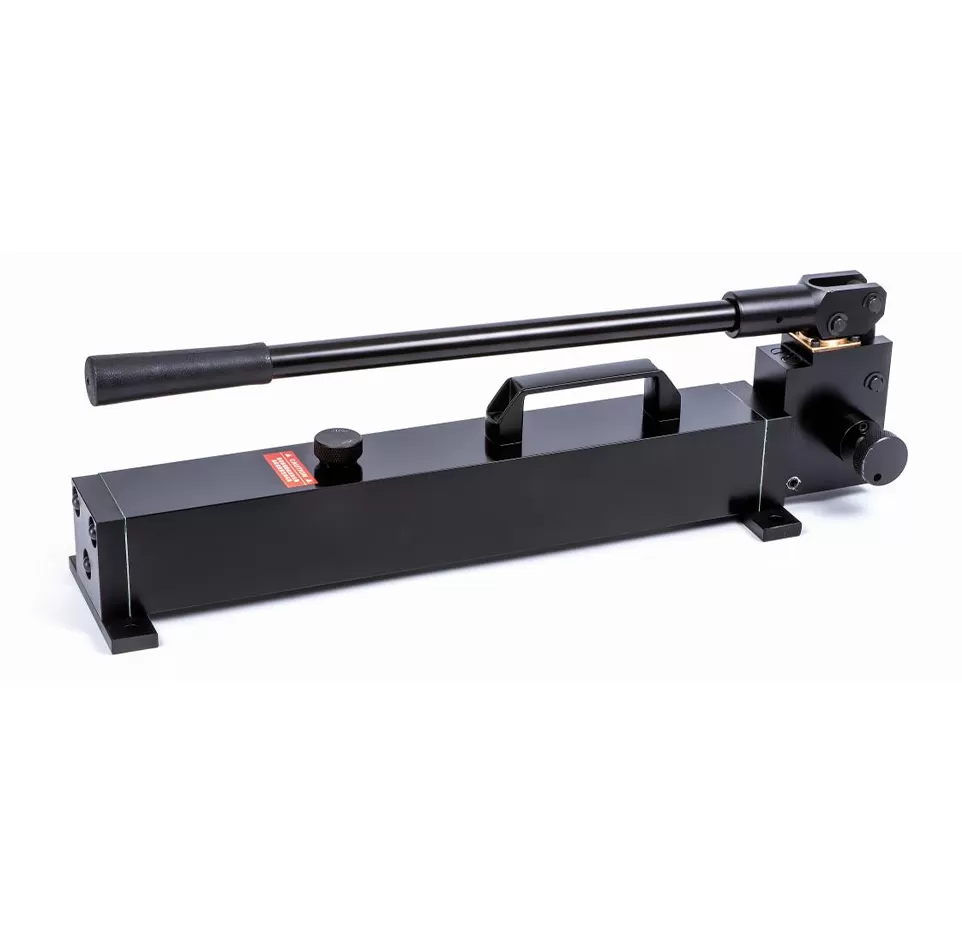

P Series Ultra-high Pressure Manual Pump

Made of aerospace-grade Al-Ti alloy, featuring lightweight, high strength, corrosion & impact resistance, suitable for various harsh environments
Dual-speed operation with built-in precision automatic high-low pressure switching valve; delivers higher flow at low pressure, saving operation time and improving work efficiency

Technical Specifications of P Series Ultra-high Pressure Manual Pump

Model	Working Pressure (MPa) Low Pressure	Working Pressure (MPa) High Pressure	Output Oil Volume (cm) Low Pressure	Output Oil Volume (cm) High Pressure	Oil Tank Capacity (cm)	Usable Oil Volume (cm)	Handle Force (N)	Overall Dimensions (mm)	Outlet Port	Pressure Gauge Port	Weight (kg)
MHP392	2.5	70	32	2.5	1670	1440	300	577x120x170	⅜" NPT	¼" NPT	6.3
MHP80	2.5	70	32	2.5	2259	1980	300	577x120x170	⅜" NPT	¼" NPT	8
MHP160	2.5	70	32	2.5	3580	3240	300	577x140x190	⅜" NPT	¼" NPT	10
MHP462	2.5	70	32	2.5	6480	5860	350	577x220x190	¼" BSP	¼" NPT	14.5
16MHP392	1.5	100	32	2.5	1670	1440	350	577x120x170	¼" BSP	½"BSP、¼" NPT	6.3
16MHP80	1.5	100	32	2.5	2259	1980	350	577x120x170	¼" BSP	½"BSP、¼" NPT	8
16MHP160	1.5	160	32	2.5	3580	3240	350	577x140x190	¼" BSP	½"BSP、¼" NPT	10
20MHP392	1.5	200	32	0.9	1670	1440	400	577x120x170	¼" BSP	½" BSP	6.3
20MHP80	1.5	200	32	0.9	2590	1980	400	577x120x170	¼" BSP	½" BSP	8
20MHP160	1.5	200	32	0.9	3580	3240	400	577x140x190	¼" BSP	½" BSP	10
28MHP80	2	280	32	0.9	1670	1980	450	577x120x170	¾"-16UNF、¼" BSP	½" BSP	6.3
40MHP80	2	400	32	0.9	1670	1980	450	577x120x170	¾"-16UNF、¼" BSP	½" BSP	6.3
