Self-locking mechanism maintains safe load indefinitely after pressure release
Overflow hole design controls stroke and ensures safety
Composite coating for superior corrosion resistance

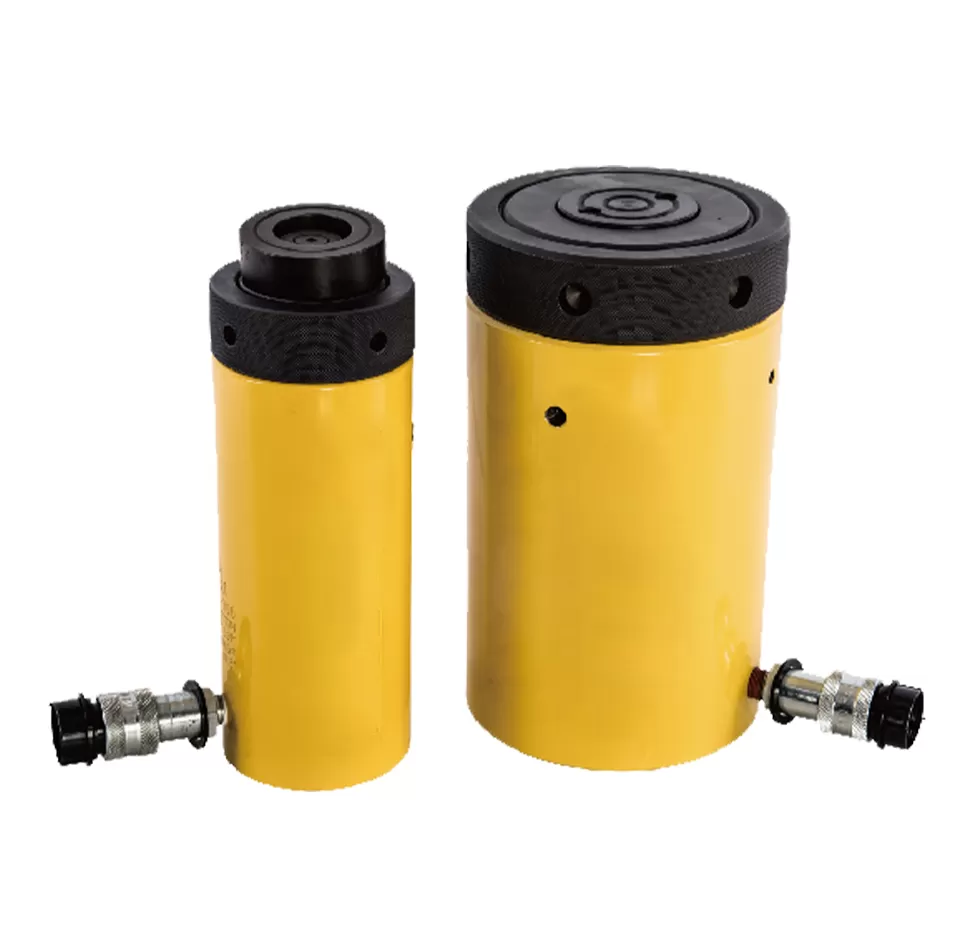

Single-acting hydraulic cylinder with load return
| Handle Type (S) | Model | Ton (t) | Stroke (mm) | Pressure Area (cm²) | Oil Volume (cm³) | Closed Height A(mm) | Extended Height B(mm) | Outer Dia. D(mm) | Inner Dia. E(mm) | Ram Dia. F(mm) | Weight (kg) |
| ★ | CLL502 | 50 | 50 | 70.9 | 355 | 164 | 214 | 125 | 95 | 71 | 15 |
| ★ | CLL504 | 50 | 100 | 70.9 | 709 | 214 | 314 | 125 | 95 | 71 | 20 |
| ★ | CLL506 | 50 | 150 | 70.9 | 1064 | 264 | 414 | 125 | 95 | 71 | 25 |
| ★ | CLL508 | 50 | 200 | 70.9 | 1418 | 314 | 514 | 125 | 95 | 71 | 30 |
| ★ | CLL5010 | 50 | 250 | 70.9 | 1773 | 364 | 614 | 125 | 95 | 71 | 35 |
| ★ | CLL5012 | 50 | 300 | 70.9 | 2127 | 414 | 714 | 125 | 95 | 71 | 40 |
| ★ | CLL1002 | 100 | 50 | 132.7 | 664 | 187 | 237 | 165 | 130 | 71 | 30 |
| ★ | CLL1004 | 100 | 100 | 132.7 | 1327 | 237 | 337 | 165 | 130 | 71 | 39 |
| ★ | CLL1006 | 100 | 150 | 132.7 | 1991 | 287 | 437 | 165 | 130 | 71 | 48 |
| ★ | CLL1008 | 100 | 200 | 132.7 | 2654 | 337 | 537 | 165 | 130 | 71 | 56 |
| ★ | CLL10010 | 100 | 250 | 132.7 | 3318 | 387 | 637 | 165 | 130 | 71 | 64 |
| ★ | CLL10012 | 100 | 300 | 132.7 | 3998 | 437 | 737 | 165 | 130 | 71 | 73 |
| ★ | CLL1502 | 150 | 50 | 198.6 | 993 | 209 | 259 | 205 | 159 | 130 | 53 |
| ★ | CLL1504 | 150 | 100 | 198.6 | 1986 | 259 | 359 | 205 | 159 | 130 | 66 |
| ★ | CLL1506 | 150 | 150 | 198.6 | 2979 | 309 | 459 | 205 | 159 | 130 | 78 |
| ★ | CLL1508 | 150 | 200 | 198.6 | 3972 | 359 | 559 | 205 | 159 | 130 | 92 |
| ★ | CLL15010 | 150 | 250 | 198.6 | 4965 | 409 | 659 | 205 | 159 | 130 | 104 |
| ★ | CLL15012 | 150 | 300 | 198.6 | 5958 | 459 | 759 | 205 | 159 | 130 | 117 |
| ★ | CLL2002 | 200 | 50 | 265.6 | 1330 | 243 | 293 | 235 | 184 | 130 | 83 |
| ★ | CLL2006 | 200 | 150 | 265.6 | 3989 | 343 | 493 | 235 | 184 | 130 | 117 |
| ★ | CLL20012 | 200 | 300 | 265.6 | 7995 | 493 | 793 | 235 | 184 | 130 | 170 |
| ★ | CLL2502 | 250 | 50 | 366.4 | 1832 | 249 | 299 | 275 | 216 | 150 | 116 |
| ★ | CLL2506 | 250 | 150 | 366.4 | 5496 | 349 | 499 | 275 | 216 | 150 | 162 |
| ★ | CLL25012 | 250 | 300 | 366.4 | 10995 | 499 | 799 | 275 | 216 | 150 | 234 |
| ★ | CLL3002 | 300 | 50 | 456.2 | 2281 | 295 | 345 | 310 | 241 | 139 | 173 |
| ★ | CLL3006 | 300 | 150 | 456.2 | 6843 | 395 | 545 | 310 | 241 | 139 | 233 |
| ★ | CLL30012 | 300 | 300 | 456.2 | 13740 | 454 | 845 | 310 | 241 | 139 | 323 |
| ★ | CLL4002 | 400 | 50 | 559.9 | 2800 | 335 | 385 | 350 | 267 | 159 | 250 |
| ★ | CLL4006 | 400 | 150 | 559.9 | 8399 | 435 | 585 | 350 | 267 | 159 | 327 |
| ★ | CLL40012 | 400 | 300 | 559.9 | 16800 | 585 | 885 | 350 | 267 | 159 | 441 |
| ★ | CLL5002 | 500 | 50 | 731.1 | 3656 | 375 | 425 | 400 | 305 | 179 | 367 |
| ★ | CLL5006 | 500 | 150 | 731.1 | 10967 | 475 | 625 | 400 | 305 | 179 | 466 |
| ★ | CLL50012 | 500 | 300 | 731.1 | 21930 | 625 | 925 | 400 | 305 | 179 | 617 |
| ★ | CLL6002 | 600 | 50 | 845.8 | 4277 | 395 | 445 | 430 | 330 | 194 | 446 |
| ★ | CLL6006 | 600 | 150 | 845.8 | 12830 | 495 | 645 | 430 | 330 | 194 | 562 |
| ★ | CLL60012 | 600 | 300 | 845.8 | 25650 | 645 | 945 | 430 | 330 | 194 | 737 |
| ★ | CLL8002 | 800 | 50 | 1176.9 | 5882 | 455 | 505 | 505 | 387 | 224 | 709 |
| ★ | CLL8006 | 800 | 150 | 1176.9 | 17645 | 555 | 705 | 505 | 387 | 224 | 870 |
| ★ | CLL80012 | 800 | 300 | 1176.9 | 35370 | 705 | 1005 | 505 | 387 | 224 | 1110 |
| ★ | CLL10002 | 1000 | 50 | 1466.4 | 7329 | 495 | 545 | 560 | 432 | 249 | 949 |
| ★ | CLL10006 | 1000 | 150 | 1466.4 | 21986 | 595 | 745 | 560 | 432 | 249 | 1141 |
| ★ | CLL100012 | 1000 | 300 | 1466.4 | 43980 | 745 | 1045 | 560 | 432 | 249 | 1430 |
| Handle Type | |
| Optional(O) | Standard(S) |
 | ● Welded Handle |
 | ● Eye Bolt |
 | ▲ Folding Handle |
 | ■ Threaded Folding Handle |
