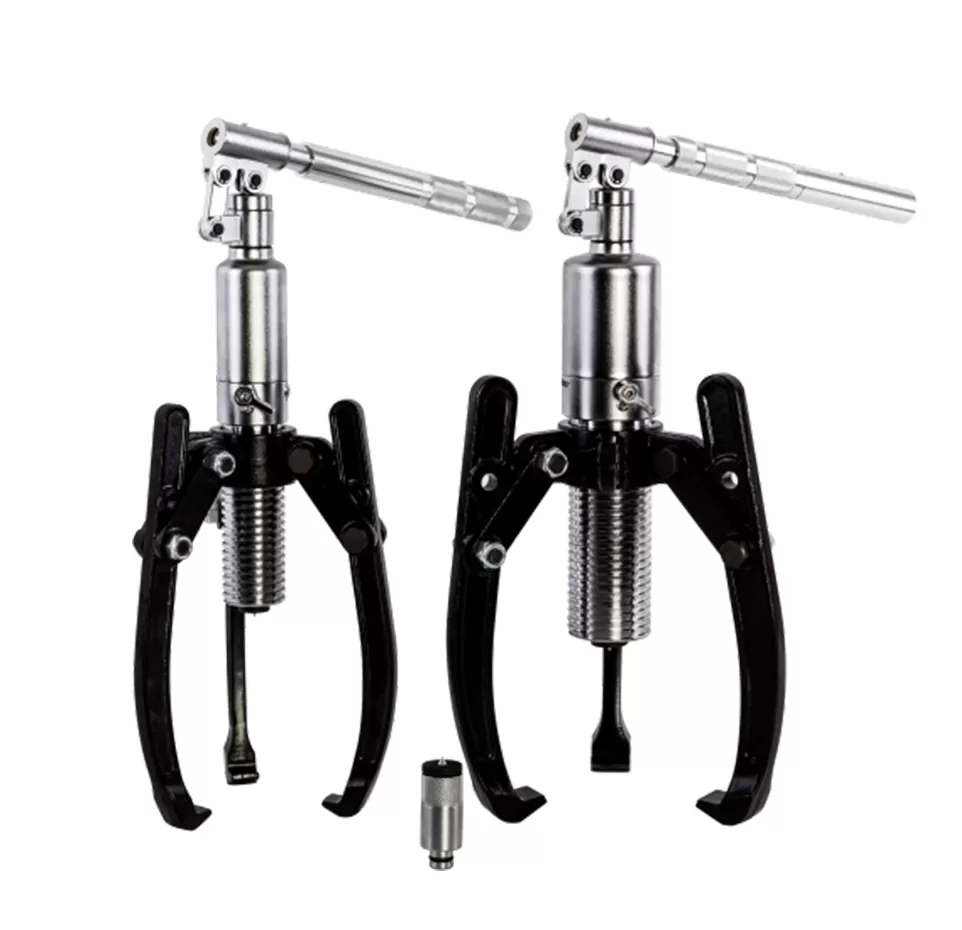

High strength alloy steel forged
Four foldable and removable handles for easy operation
360 ° swivel seat
Puller body is equipped with a safety valve
Hydraulic cylinder hard chrome treatment to strengthen hardness
Center nut spring can bear load easy to use
2/3 claw top collar surface blackened, durable use and rust proof
Heat-treated alloy steel forging connection bolt and surface blackened claw, prevent rust, increase service life
Claw load is more than 120% of the rated load
| Model | Force(t) | Stroke(A)mm | Pressure Area(cm) | Claw Depth(mm) | Claw Distance(mm) | Top (mm)B | Top (mm)C | Top (mm)D | Claw End (mm)A1 | Claw End (mm)B1 | Claw End (mm)C1 | Weight(kg) |
| ESP-600 | 6 | 70 | 8.04 | 245 | 330 | 45 | 23 | 91 | 13 | 10 | 22 | 5.5 |
| ESP-800 | 8 | 85 | 11.34 | 230 | 350 | 55 | 26 | 112 | 11 | 10 | 25 | 7.5 |
| ESP-1200 | 12 | 85 | 14.45 | 260 | 375 | 60 | 28 | 118 | 14 | 10 | 29 | 9.5 |
| ESP-2000 | 20 | 111 | 28.26 | 350 | 520 | 80 | 40 | 162 | 20 | 27 | 33 | 23.5 |
| ESP-3000 | 30 | 111 | 42 | 435 | 550 | 98 | 50 | 155 | 20 | 27 | 38 | 34 |
