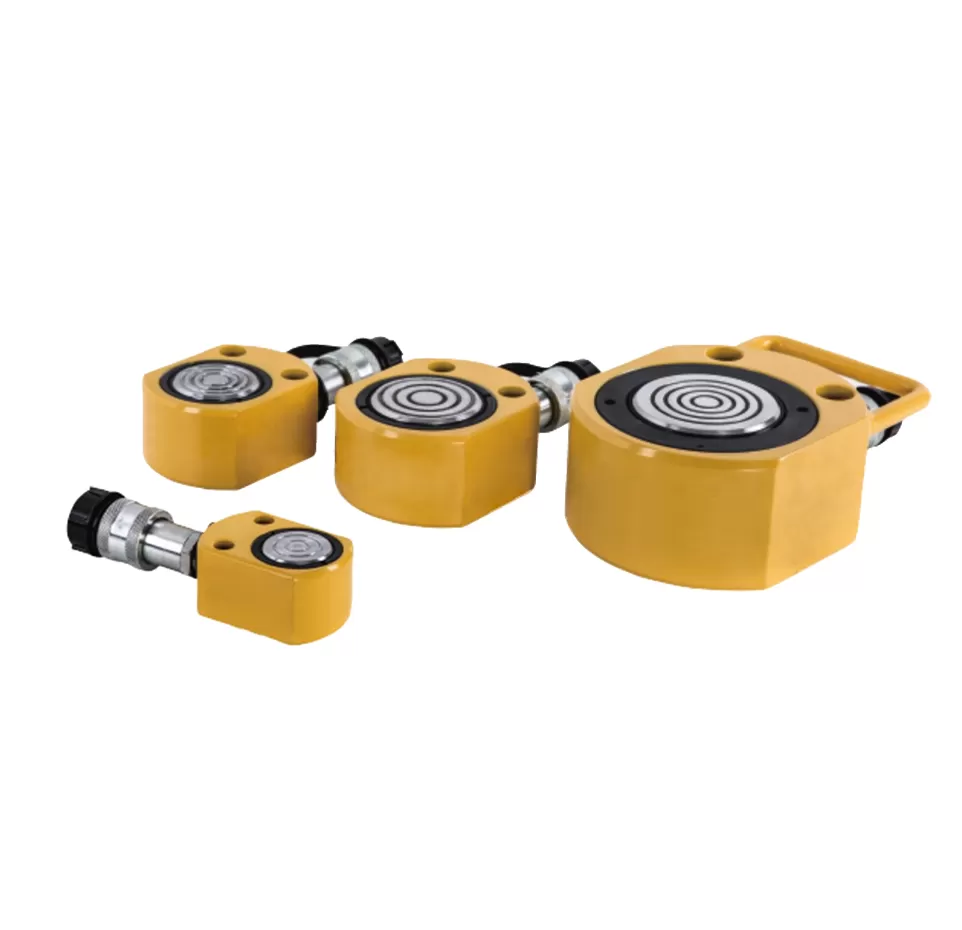

Single-acting cylinder with spring return for easy, quick operation
Painted surface for improved corrosion resistance
Lightweight, compact ultra-thin design, ideal for confined spaces
| Handle Type (S) | Model | Ton (t) | Stroke (mm) | Pressure Area (cm) | Oil Volume (cm) | Closed Height A(mm) | Extended Height (mm) | Outer Dia. D(mm) | Inner Dia. E(mm) | Ram Dia. F(mm) | Weight (kg) |
| RSM50 | 5 | 6 | 6.5 | 4 | 32 | 38 | 59x42 | 28.7 | 25.4 | 1 | |
| RSM100 | 10 | 12 | 14.5 | 16 | 42 | 54 | 83x56 | 42.9 | 38.1 | 1.4 | |
| RSM200 | 20 | 11 | 28.7 | 31 | 51 | 62 | 100x75 | 60.5 | 50.8 | 3.1 | |
| RSM300 | 30 | 13 | 41.8 | 54 | 58 | 71 | 118x95 | 73.2 | 63.4 | 4.5 | |
| RSM500 | 50 | 16 | 62.1 | 101 | 66 | 82 | 140x115 | 88.9 | 69.8 | 6.8 | |
| ● | RSM750 | 75 | 16 | 102.6 | 166 | 79 | 95 | 166x140 | 114.3 | 82.6 | 11.3 |
| ● | RSM1000 | 100 | 16 | 126.7 | 203 | 85 | 101 | 178x153 | 127 | 92.2 | 14.5 |
| ● | RSM1500 | 150 | 16 | 198.1 | 321 | 100 | 116 | 216x191 | 158.8 | 114.3 | 26.3 |
| Handle Type | |
| Optional(O) | Standard(S) |
 | ● Welded Handle |
 | ● Eye Bolt |
 | ▲ Folding Handle |
 | ■ Threaded Folding Handle |
