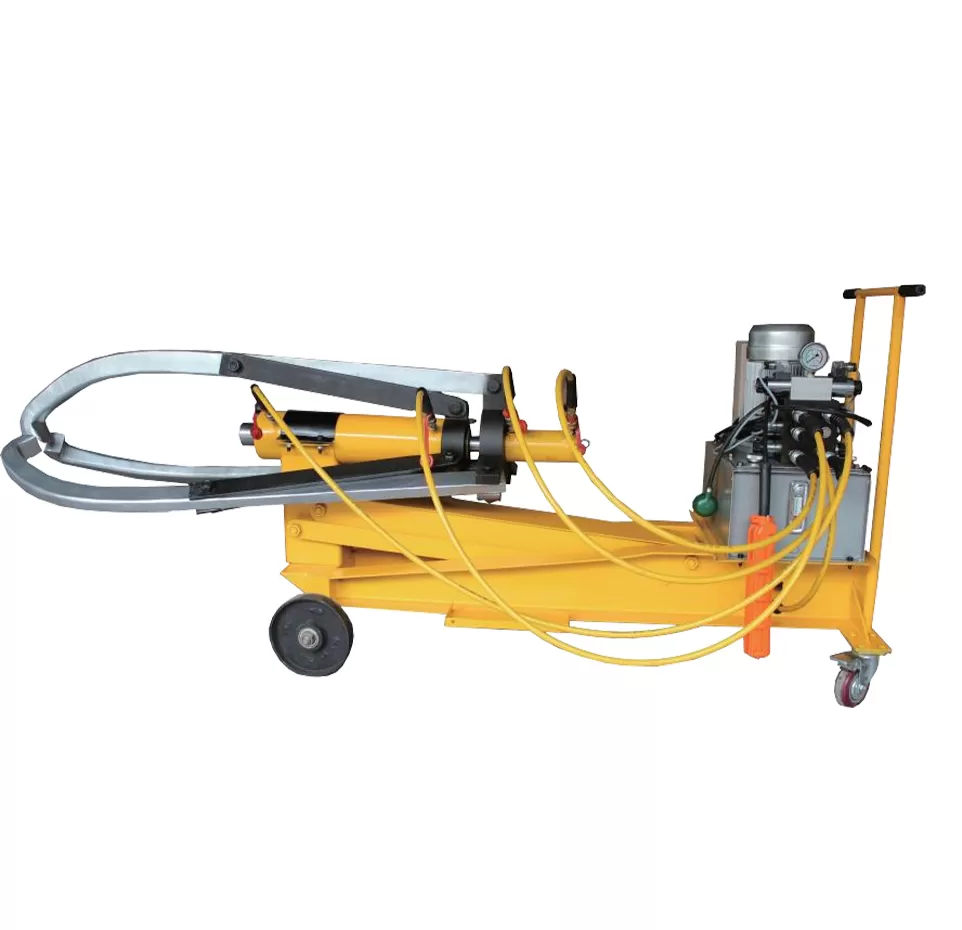

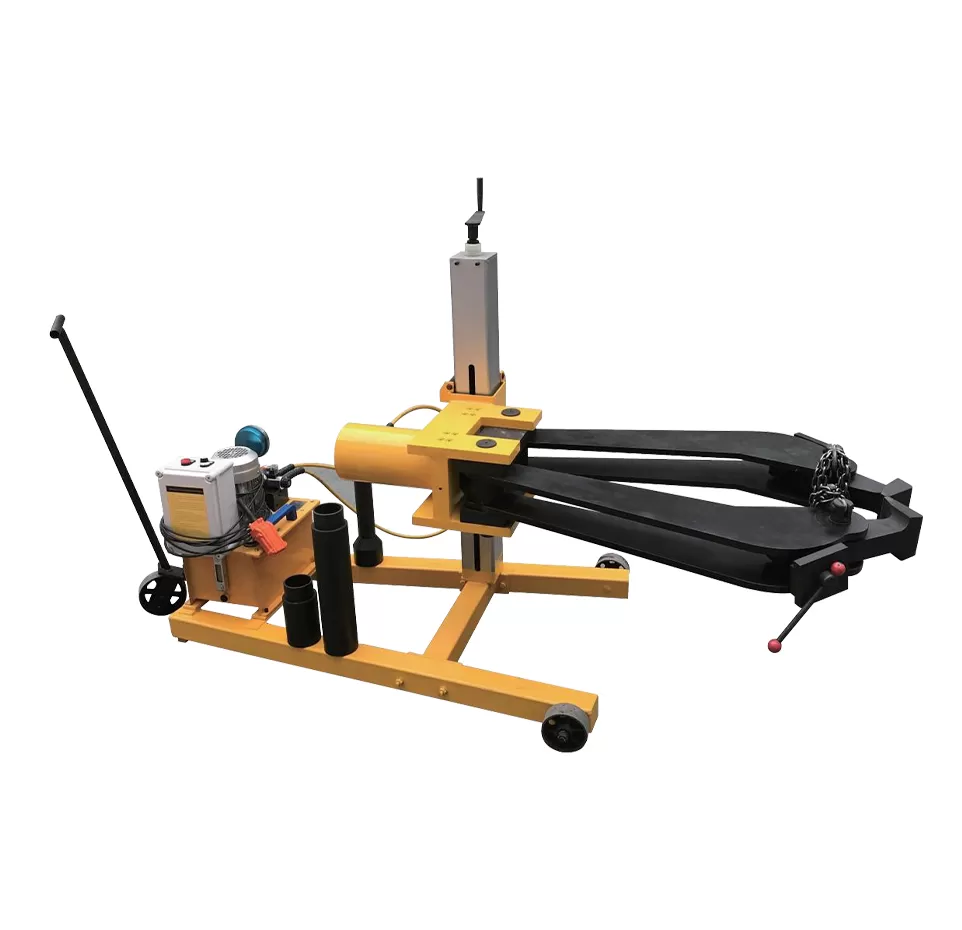

Automatic Manual Lifting Puller (PH Series 3-Jaw Self-Centering Vehicle-Mounted Puller, 100T Self-Centering Synchronous Vehicle-Mounted Puller) Consists of integrated puller, quick-connect bracket, and horizontal jack lifting & moving device.
Fully automatic hydraulic design for automatic lifting, clamping and pulling.Features easy adjustment, convenient movement and safe operation.
| Model | Capacity (t) | Opening (mm) | Pulling Depth (mm) | Center Height (mm) | Cylinder Stroke (mm) | Cylinder Force (mm) | Three-phase Power Source | Overall Length (mm) |
| LA50337 | 50 | 100~1220 | 178~381 | 450~1120 | 337 | 50 | 380V | 2286 |
| LA50L337 | 50 | 64~1150 | 559~651 | 450~1120 | 337 | 50 | 380V | 2590 |
